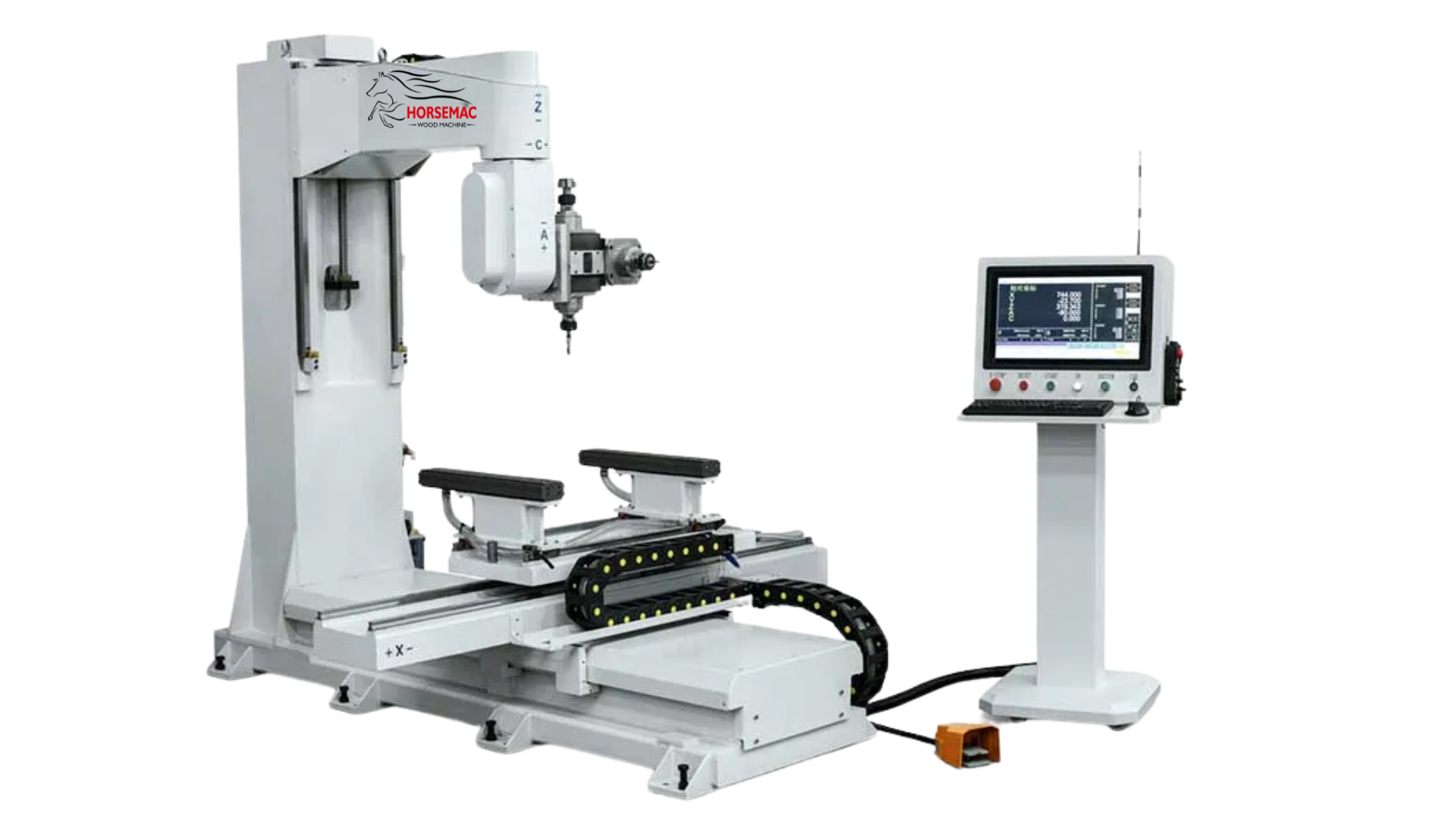

5 Axis CNC Center RF-5JET-S

MAINLY USED FOR DINING CHAIRS AND OTHER STRIP WORKPIECES
IT CAN COMPLETE THE TENONING, SLOT MILLING, DRILLING OF 3 SURFACES AND 2 SIDES MULTIPLE PROCESSES
A COMPREHENSIVE MACHINING CENTER

Model	HM-5JET-S
Working stroke XY/VZ	15001220600mm
A/C axis stroke	±370°

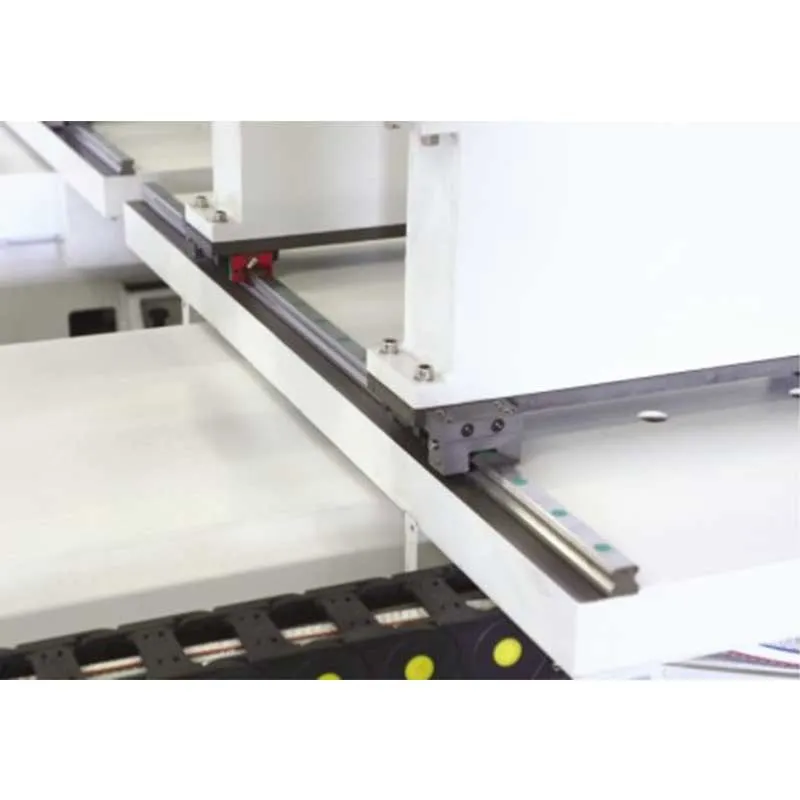

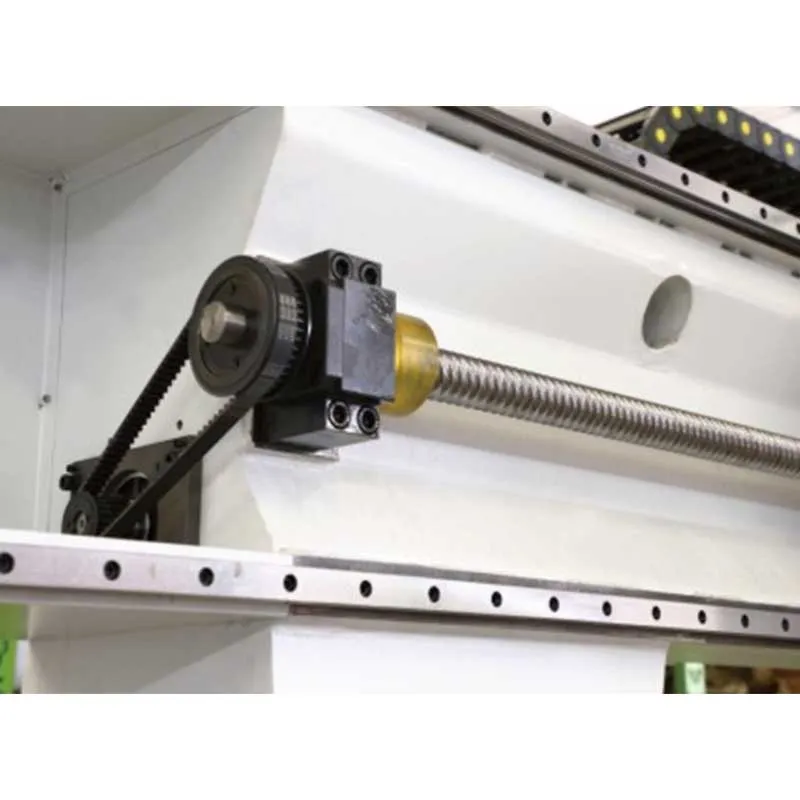

Transmission type	Precision ball screws

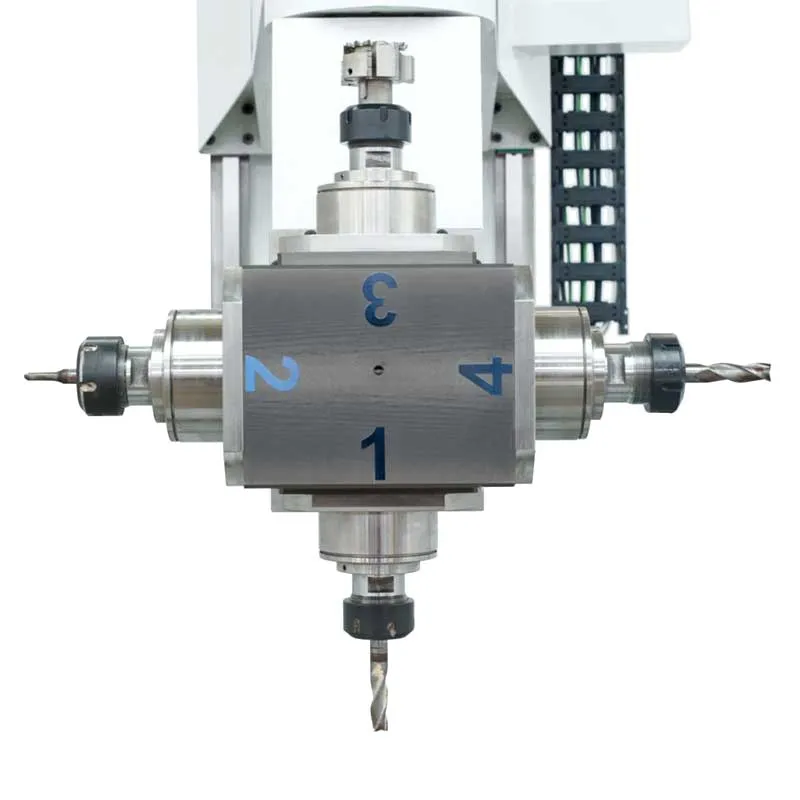

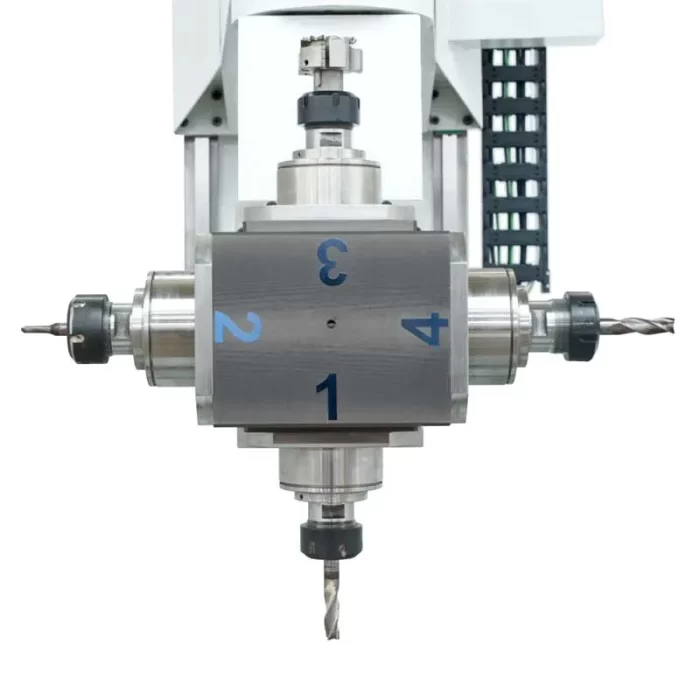

Spindle power	2*7.5KW
Spindle mode	Air-cooling spindle
Spindle speed	0-24000 rpm/min
Working speed	20-50m/min

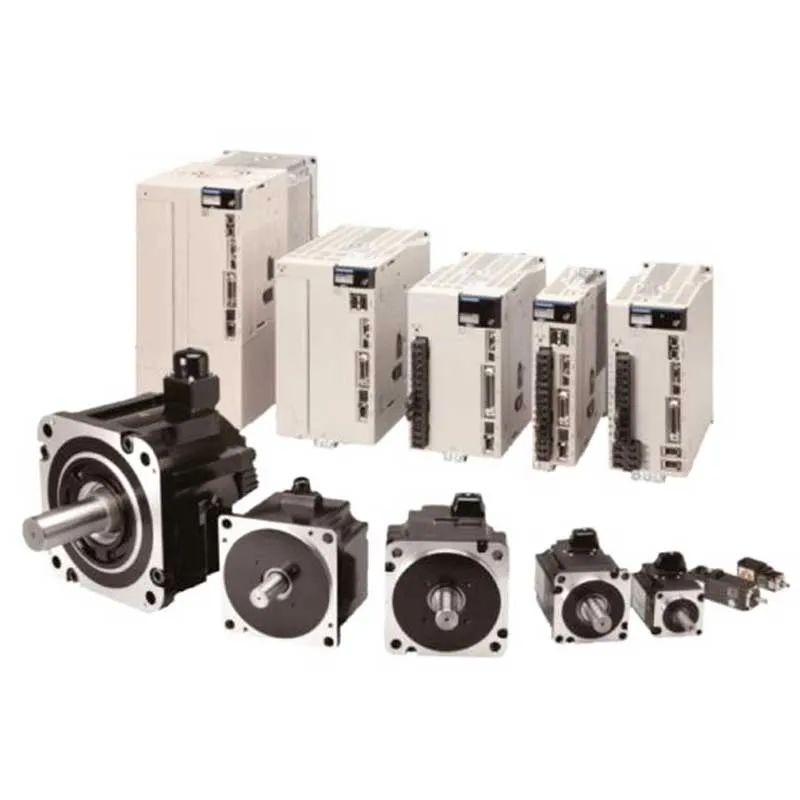

Driver	Taiwan Syntec

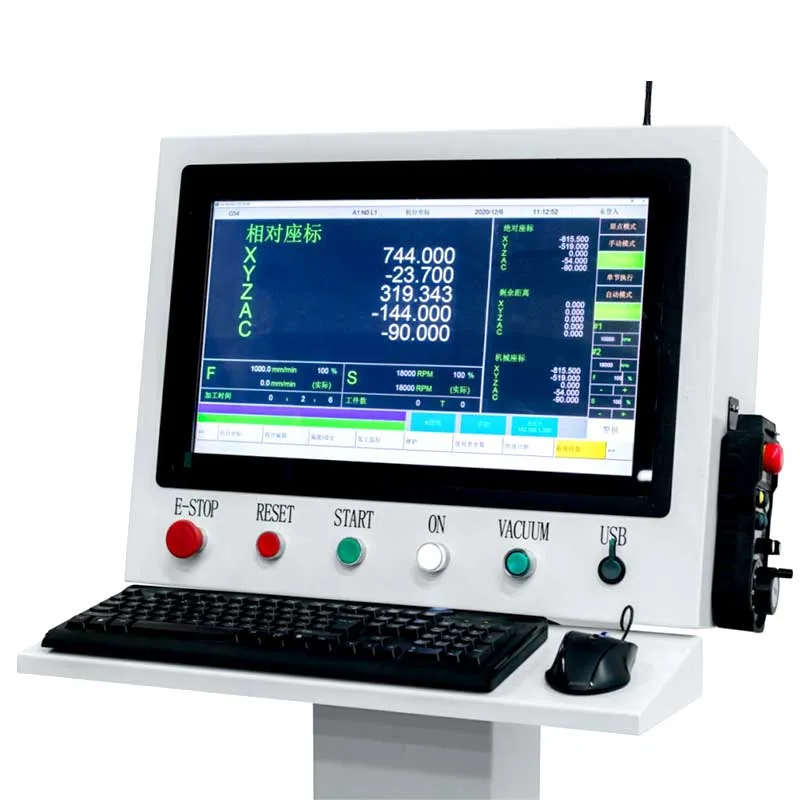

Operation system	Taiwan Syntec computer control system
Software available	Alphacam
Operation instruction	G-code, *.NC
