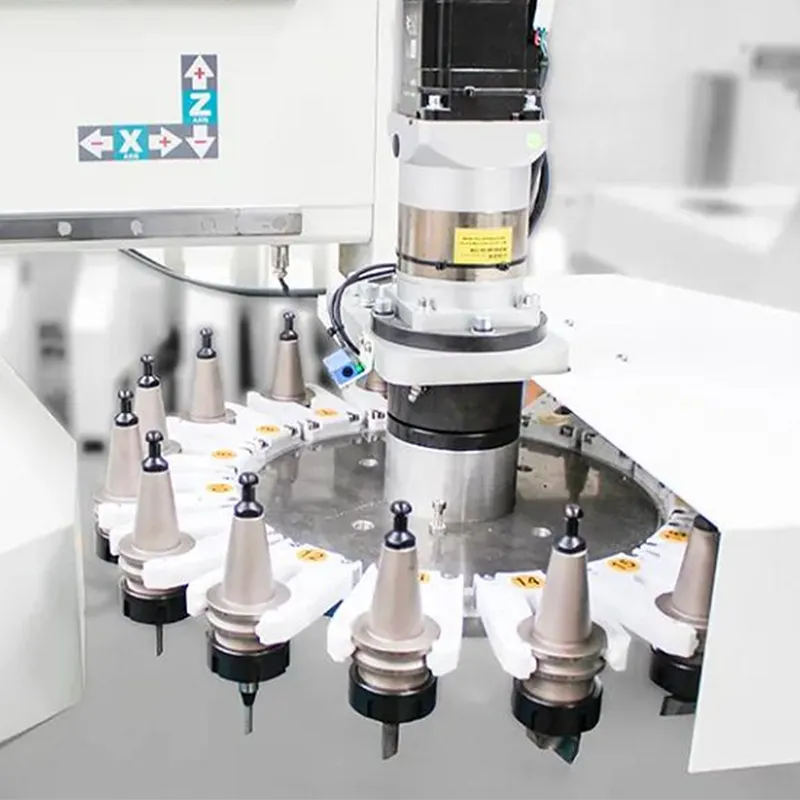

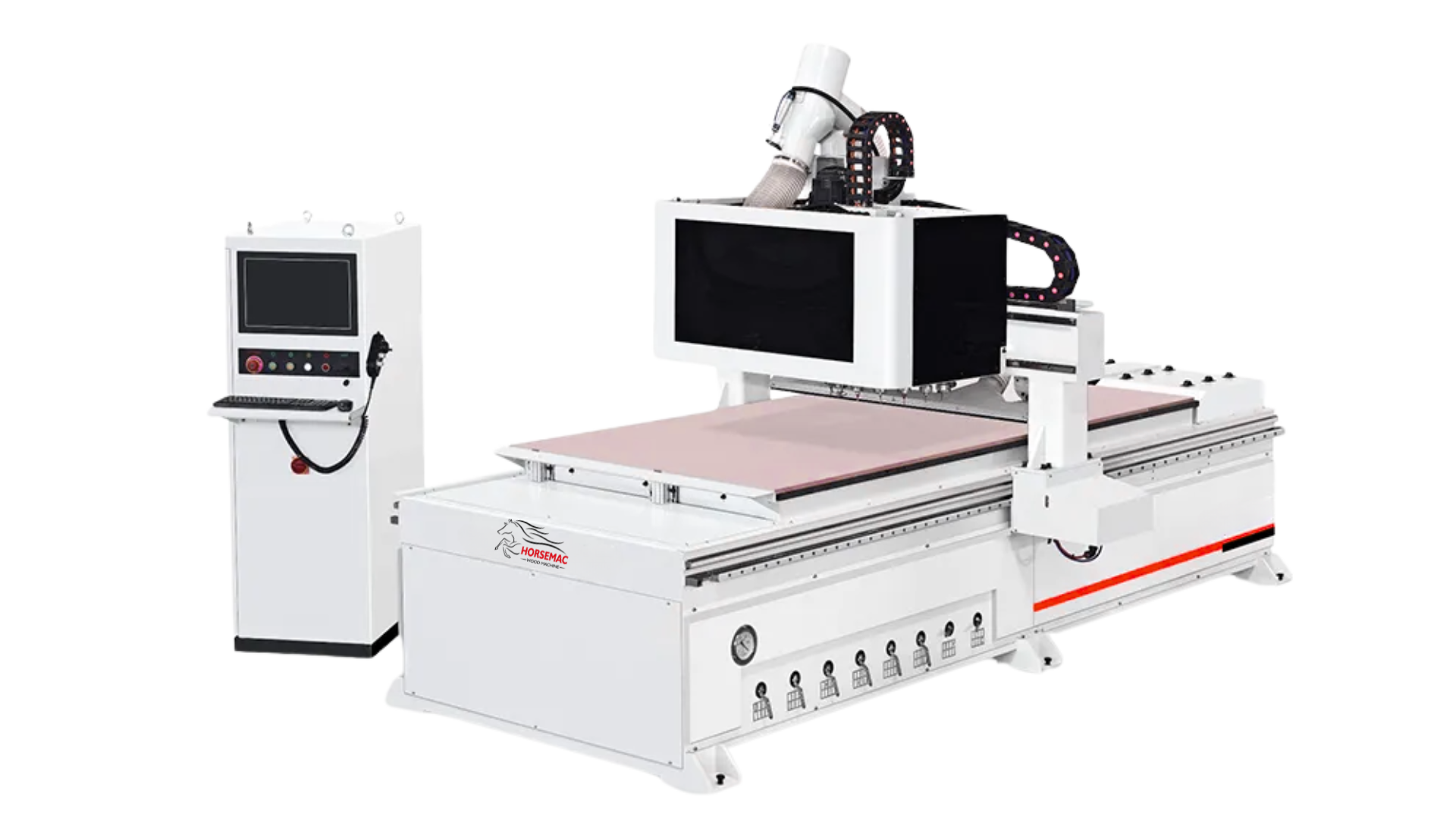

ATC CNC Router with Round Tool Magazine

Model	HM-R8	HM-R16
Work stroke	1300500050mm	1300500050mm

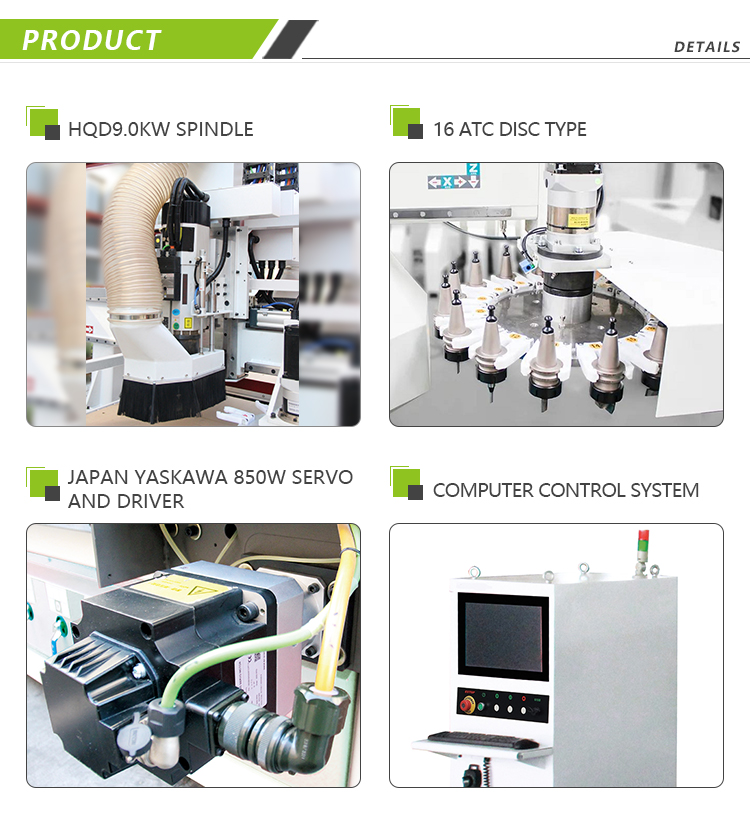

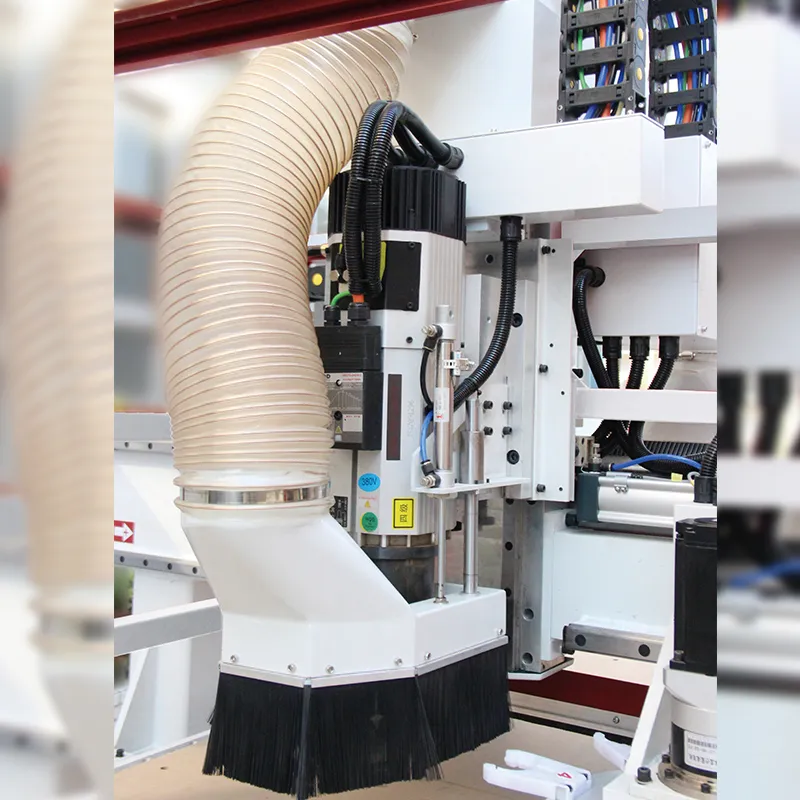

Spindle Brand	HQD 9KW	HQD 9KW
Spindle Speed	18000r/min	18000r/min
Drive system	Japan Yaskawa 850W servo drive	Japan Yaskawa 850W servo drive

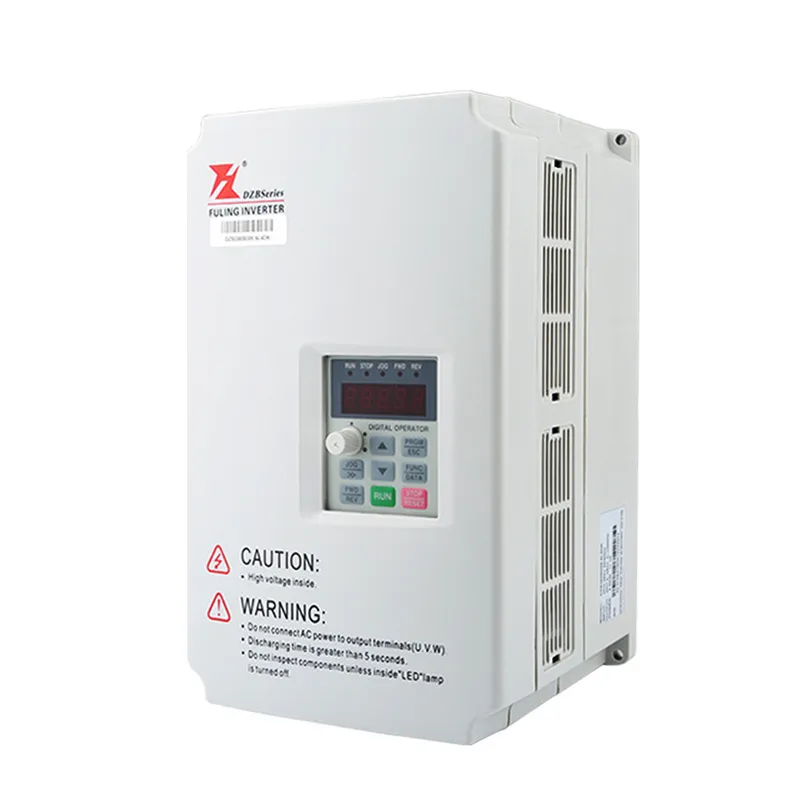

Inverter	Fulling 11KW	Fulling 11KW
Guide rail X/Y/X axis	25mm	25mm
Positioning cylinder X axis	2sets	4sets
Positioning bar Y axis	Installed in two sides of Y axis	Installed in two sides of Y axis
PVC vacuum adsorption	Total 6 areas, 2 holes in each area	Total 6 areas, 2 holes in each area
Vacuum Pump	Domestic water cycle 7.5kw	Domestic water cycle 7.5kw
Reducer	Helical gear reducer, 2m rack	Helical gear reducer, 2m rack
Max. Idling speed	X/Y axis: 75m/min, Z axis: 15m/min	X/Y axis: 75m/min, Z axis: 15m/min
Max. work speed	X/Y axis: 25m/min, Z axis: 10m/min	X/Y axis: 25m/min, Z axis: 10m/min
Total power	25KW	28KW
Work voltage	380V 50HZ 3P	380V 50HZ 3P
Operation instruction	G-code, *.NC	G-code, *.NC

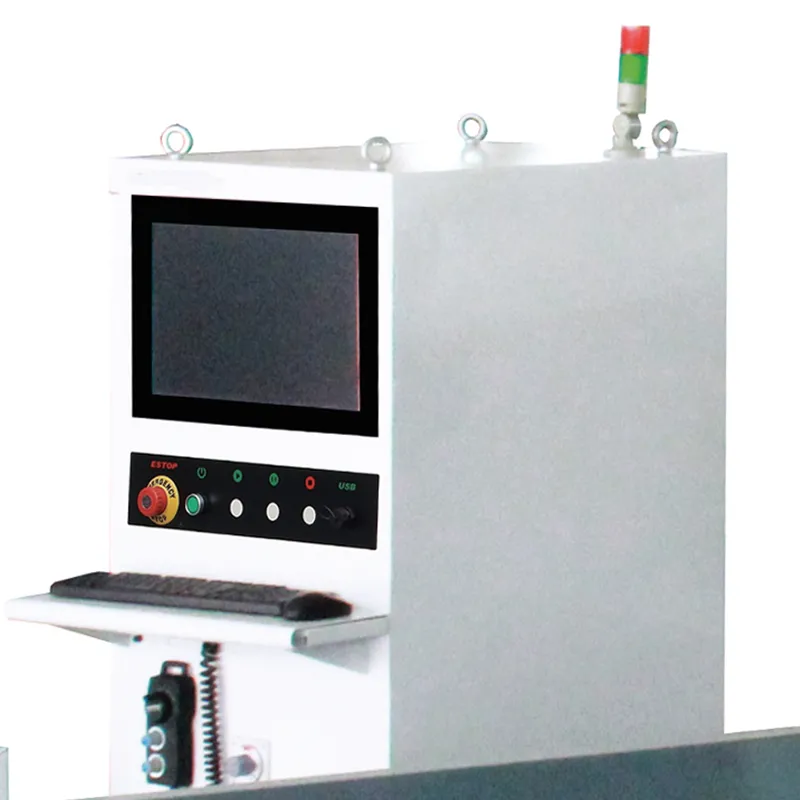

Operation system	SYNTEC FC computer control system (display monitor and handwheel) Other control system is optional	SYNTEC FC computer control system (display monitor and handwheel) Other control system is optional
