Automatic Press Brakes for 100T 125T 160T
- PRESS BRAKE IS AN IMPORTANT EQUIPMENT IN SHEET METAL PROCESSING, ITS WORK ACCURACY DIRECTLY AFFECTS THE BENDING ACCURACY OF THE WORKPIECE
- THE STRESS CAN CAUSE THE RAM AND WORKTABLE SOME DEFORMATION DURING THE PROCESS OF BENDING

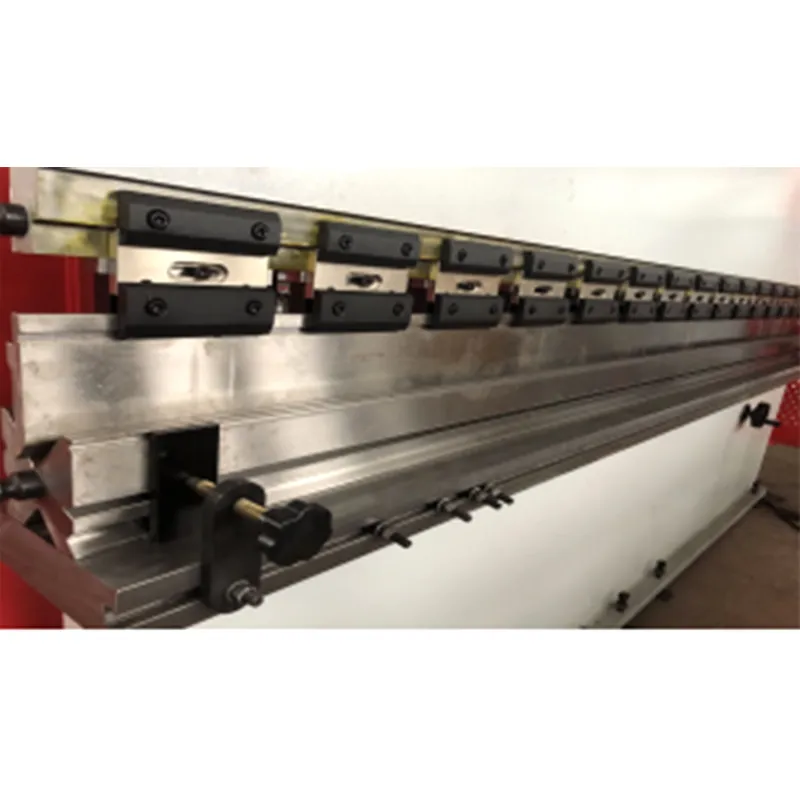

- THE CROWNING CAN MAKE RELEVANT COMPENSATION TO THE RAM DEFORMATION, WHICH IMPROVES THE PRECISION OF PRESS BRAKE BY A WIDE MARGIN
- IT IS SPECIALLY APPLIED TO MAKE SOME HIGH PRECISION PRODUCTS SUCH AS STAINLESS STEEL
| Model | HM-100/2500 | HM-125/4000 | HM-160/6000 |
| Nominal Pressure | 1000kN | 1250kN | 1600kN |
| Length of Working table | 2500mm | 4000mm | 6000mm |
| Distance between uprights | 2050mm | 3200mm | 4800mm |
| Throat depths | 320mm | 320mm | 320mm |
| Ram stroke | 120mm | 130mm | 200mm |
| Motor power | 7.5kw | 7.5kw | 15kw |
| Max open height | 380mm | 380mm | 470mm |
| Overall size | 3000*1600*2400mm | 4500*1800*2400mm | 6500*2000*3300mm |
