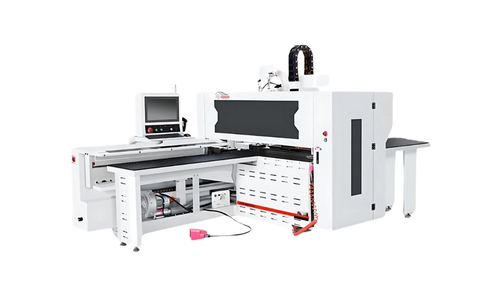

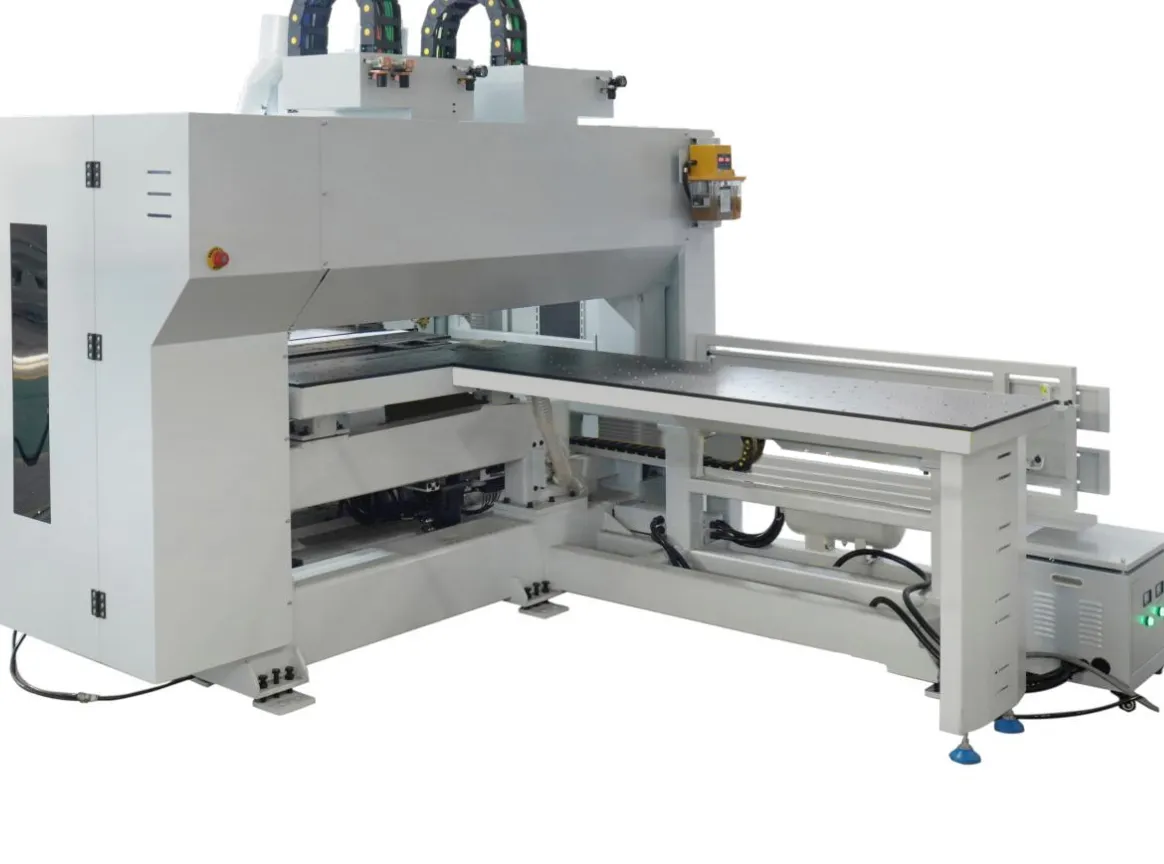

CNC 6 Sides Drilling Machine

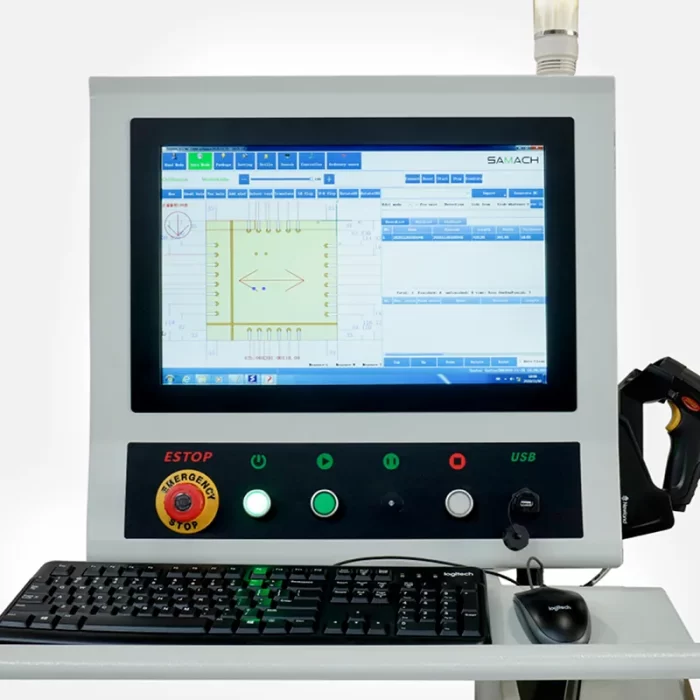

- CONTROL SYSTEM: SYNTEC OR NCSTUDIO

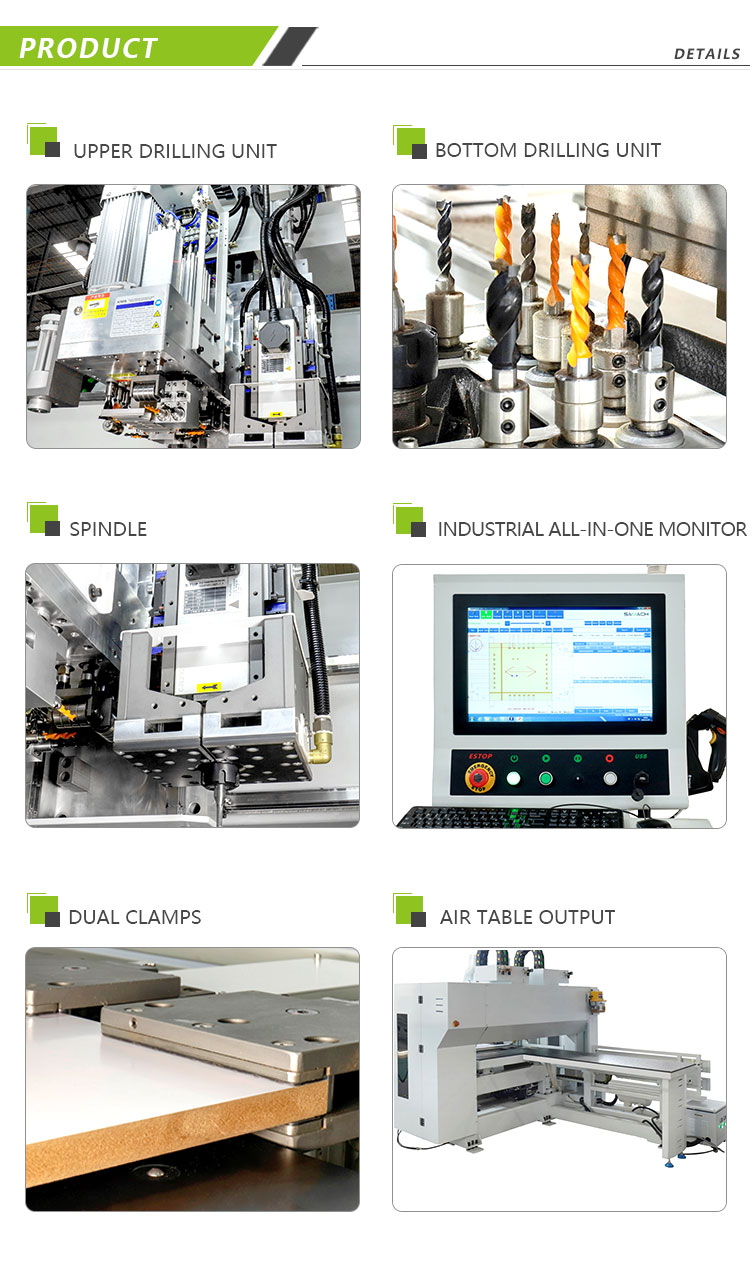

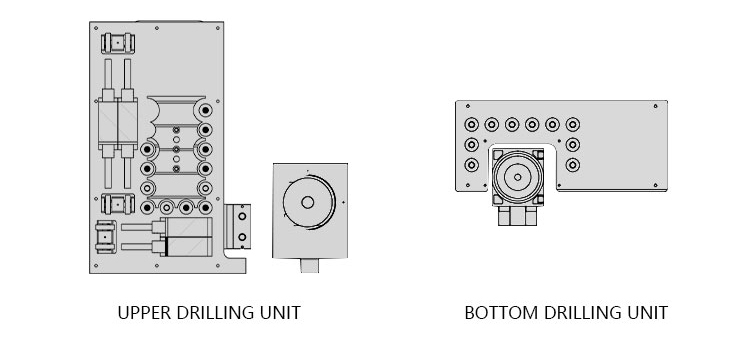

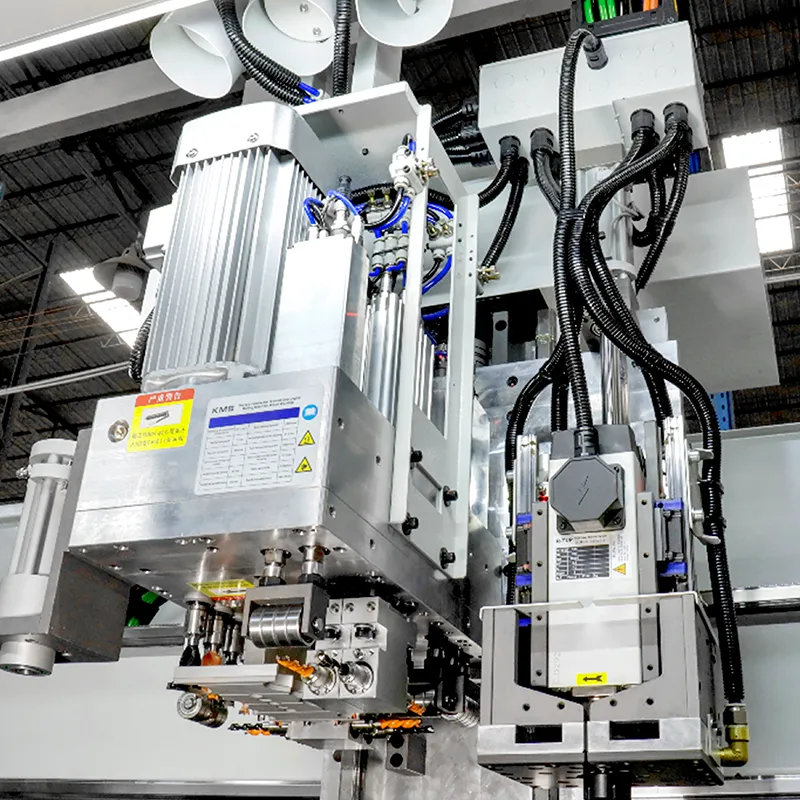

- TOP DRILLING BLOCKS VER. 12 PLUS HOR. X: 2*2 + Y: 2*2

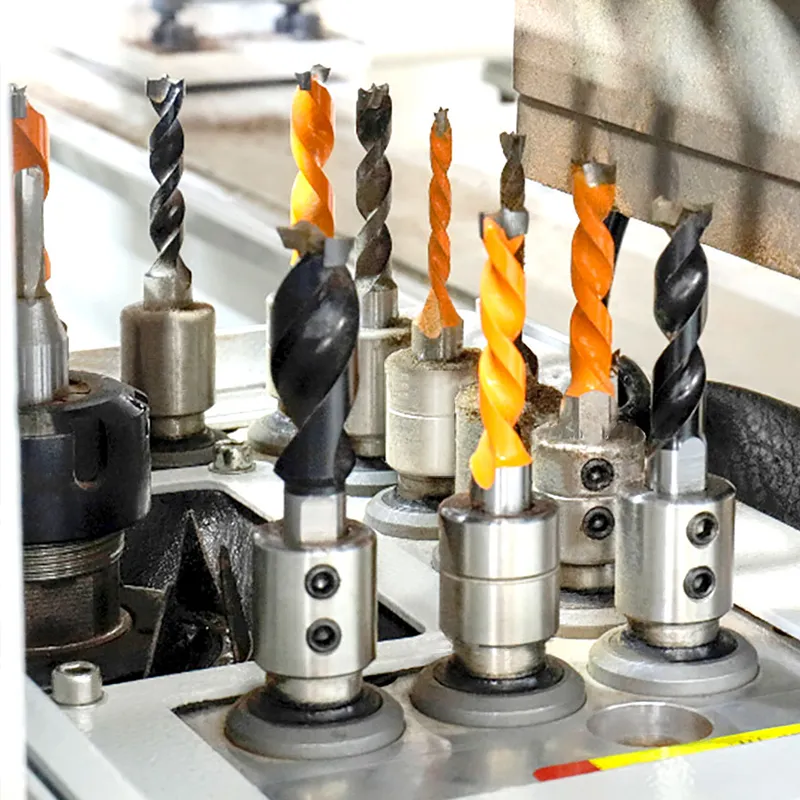

- 1 BOTTOM DRILLING BLOCK WITH VER. 10
- 30 DRILLS IN TOTAL

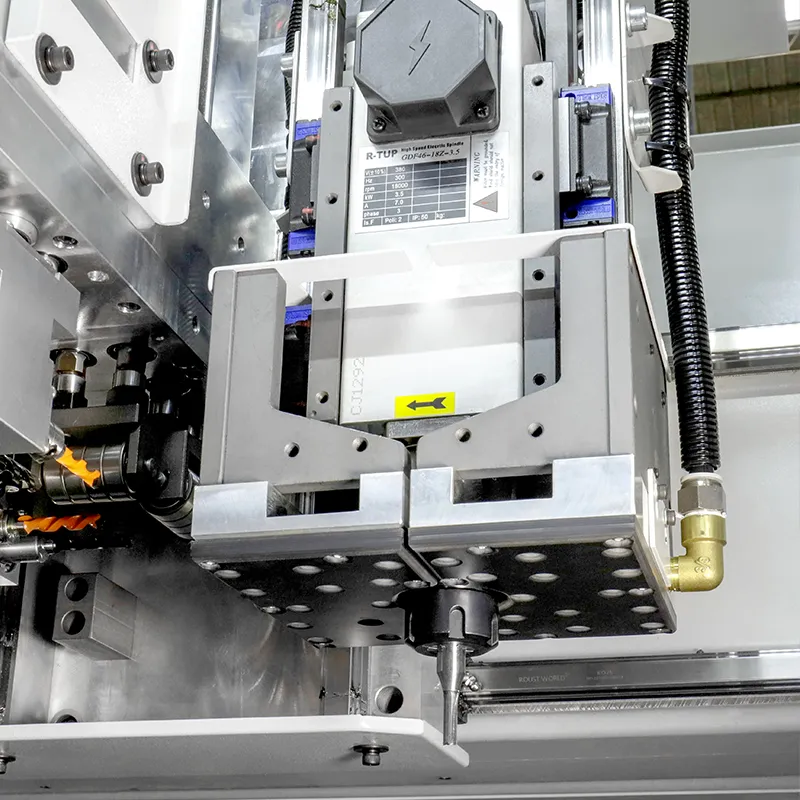

- TOP AND BOTTOM 3.5KW SRINDLE ROUTER
- ADAPTS DXF MPR XML COMMON FURNITURE FORMAT
| Model |
HM-126A |
| Efficiency |
80-100pcs per hour |
| Length of board |
200-2800mm |
| Width of board |
50-1200mm |
| Thickness of board |
9-40mm |
| X/Y/Z MAX.Speed |
120/80/30m/min |
| Power of main shaft |
3.5kw*2 |
| Speed of main shaft |
18000rpm |
| Upper vertical drill |
12 |
| Upper horizontal drill |
X: 2*2+Y: 2*2 |
| Bottom vertical drill |
10 pcs |
| Overall dimensions |
4600*2580*2150mm |
