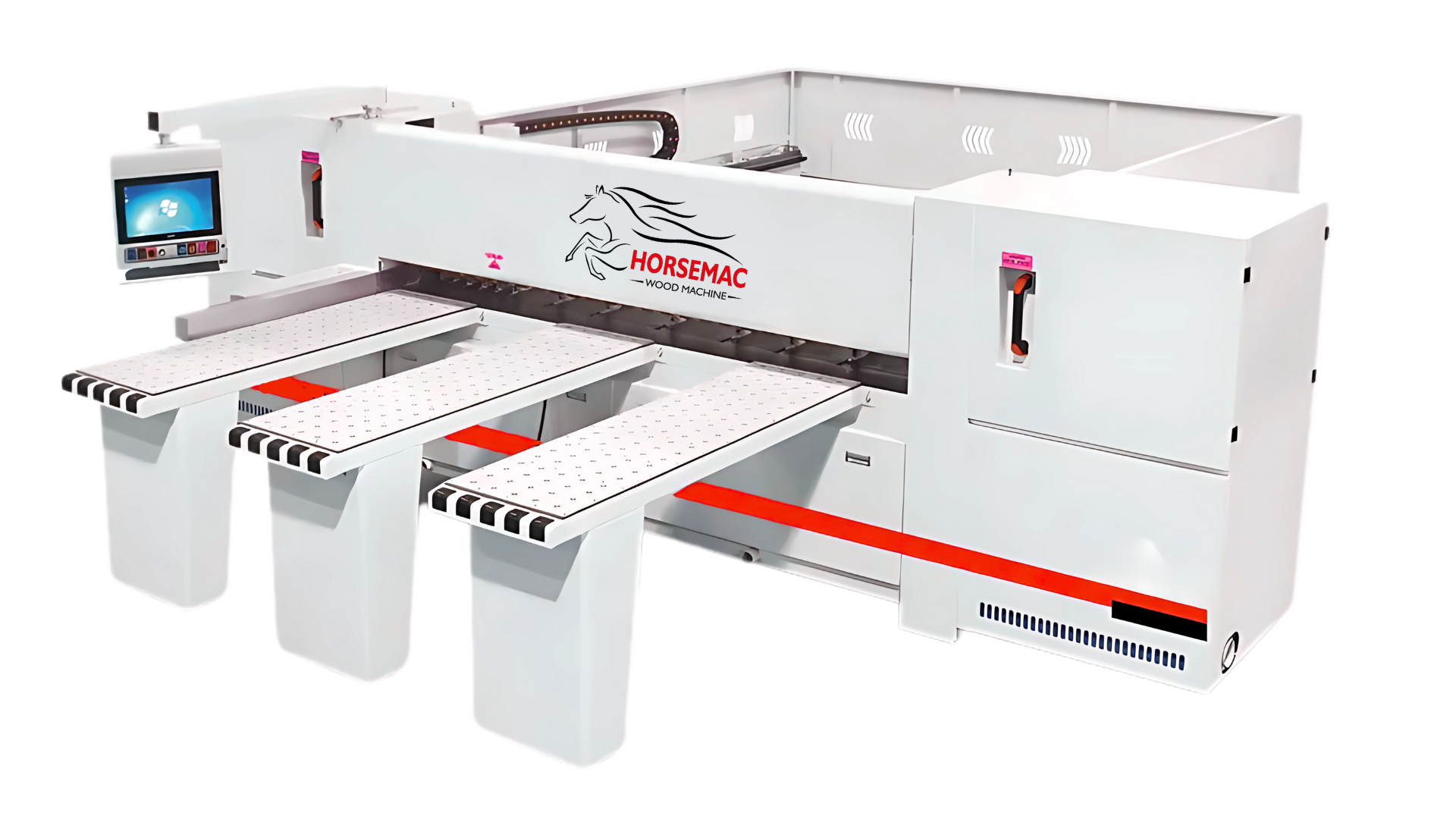

CNC Panel Saw RCJ2800E-3300E

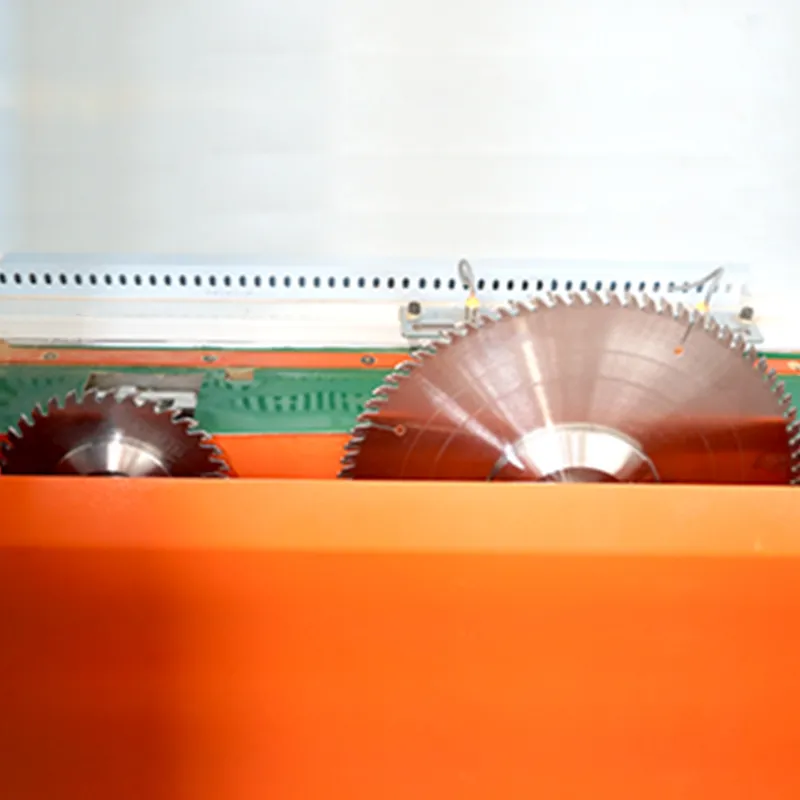

INDEPENDENT LIFTING OF MAIN AND GROOVE SAWS, 15KW FOR MAIN MOTOR, 2.2KW FOR GROOVE

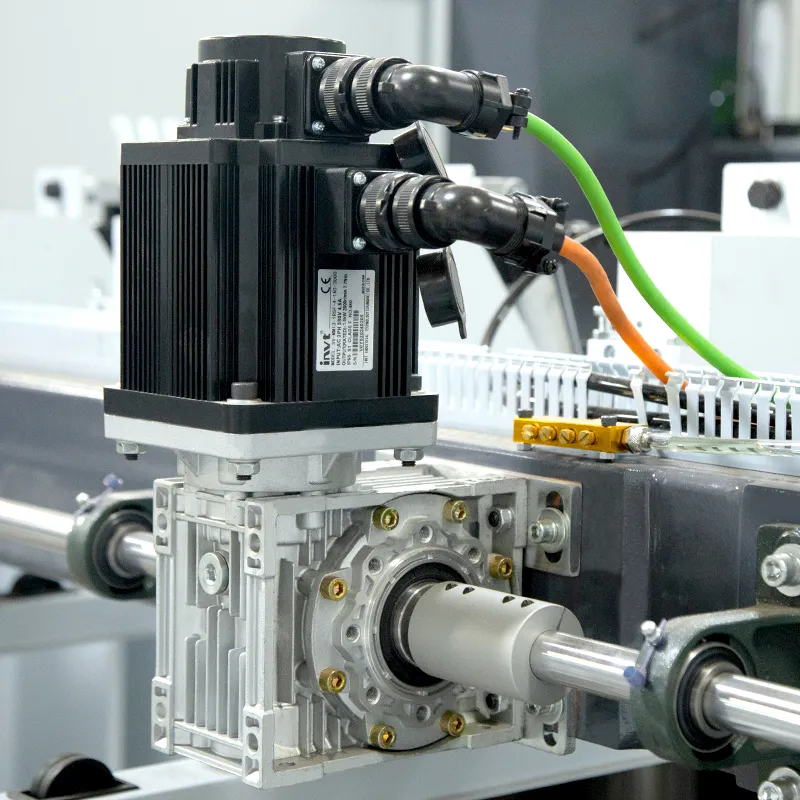

PERFECT COMBINATION OF RACK AND PINION TRANSMISSION AND REDUCER CONTROL ACHIEVE ±0.15 ACCURACY

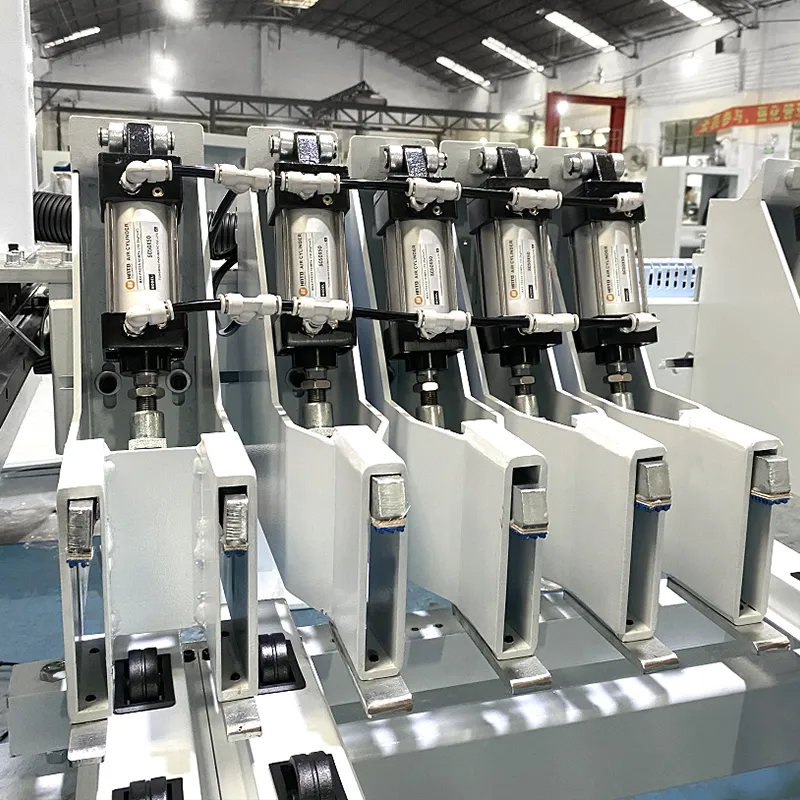

WITH 8/11/13/15/17/18 PCS OF GRIPPERS FOR DIFFERENT WIDTH BOARDS
BAR CODER WHICH CAN READ COMMON FILES, MPR, DXF, BAN, ETC

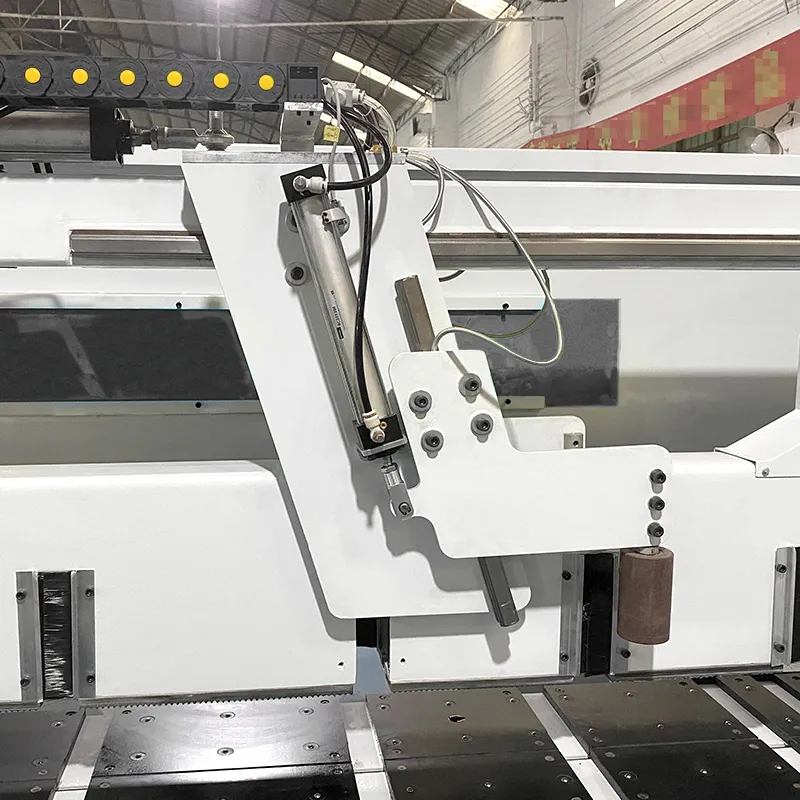

UPPER SIDE PRESSURE DEVICE

Model	HM2800E	HM3300E
Work length	2750mm	3250mm
Work thickness	100mm	100mm
Main saw blade diameter	Ф350mm	Ф350mm
Main saw shaft diameter	Ф80mm	Ф80mm
Main saw shaft speed	4800rpm	4800rpm
Groove saw blade diameter	Ф180mm	Ф180mm
Groove saw shaft diameter	Ф55mm	Ф55mm
Groove saw shaft speed	6900rpm	6900rpm
Saw base forward speed	100m/min	100m/min
Saw base retreat speed	150m/min	150m/min
Main saw motor	15kw	15kw
Groove saw motor	2.2kw	2.2kw
Saw base drive motor	1.5kw	1.5kw

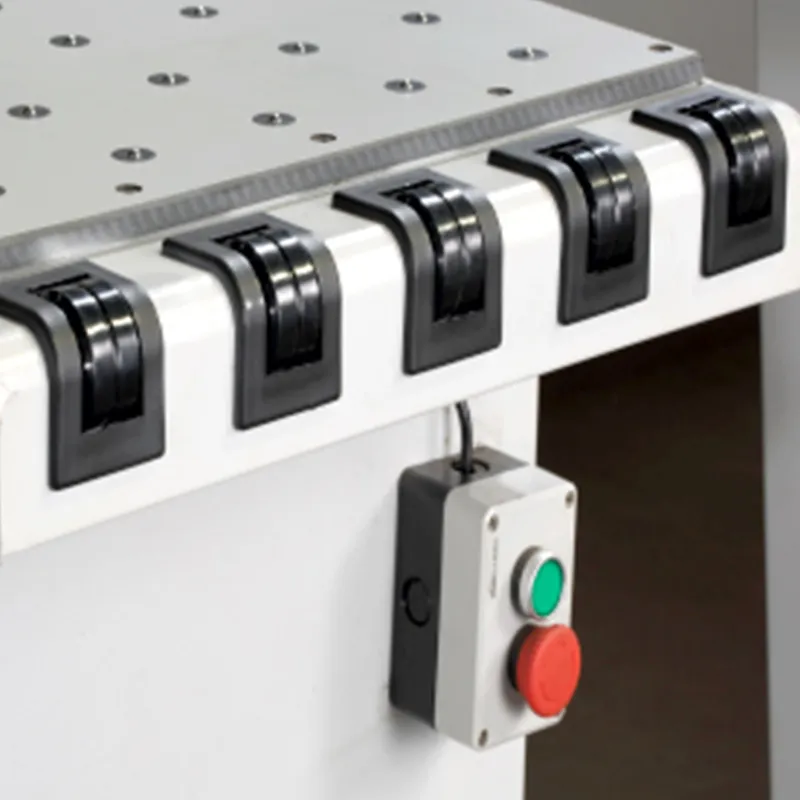

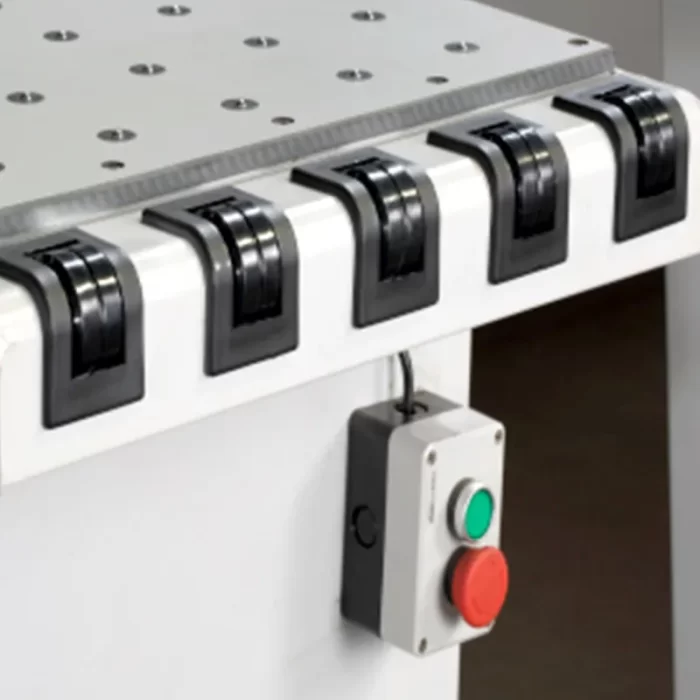

Automatic feeding motor	2.0kw	2.0kw
High pressure blower motor	3kw	3kw
Total power	23kw	23kw
Automatic feeding speed	100m/min	100m/min
Gripper quantity	11	13
Air pressure	5-7kg/cm²	5-7kg/cm²
Height of worktable away ground	950mm	950mm
Machine size	540053001800mm	590058001800mm
Optimization software&Printer	Optional	Optional
