CNC Sliding Panel Saw

APPLY TO PROCESSING ALL KINDS OF DENSITY BOARDS, SHAVING BOARDS, WOOD BASED PANELS, ABS PANELS, PVC PANELS, SOLID WOOD, ETC

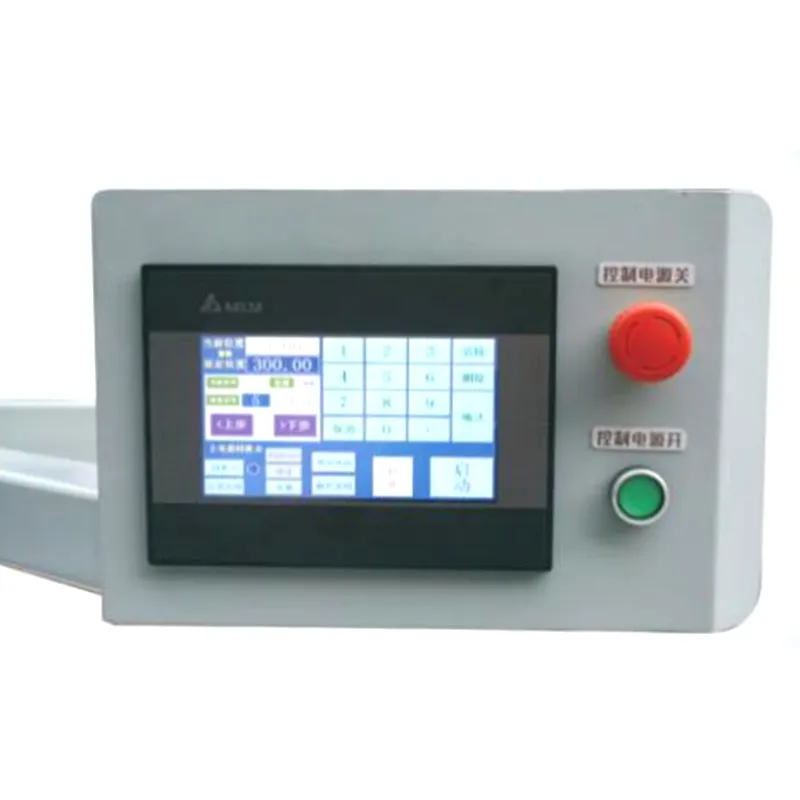

7″ TOUCH SCREEN CONTROL PANEL WHICH IS EASY TO OPERATE

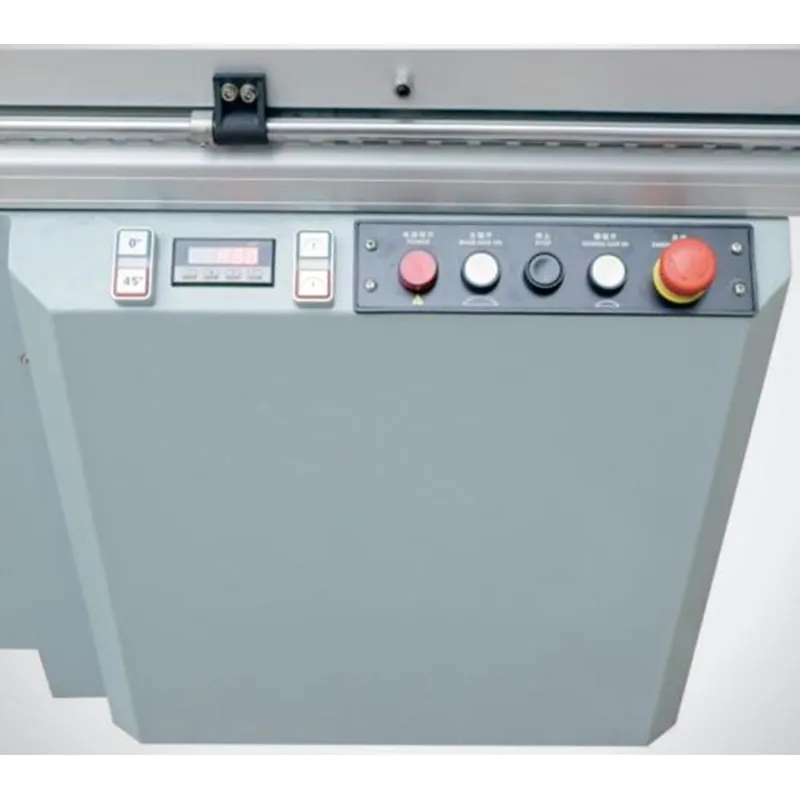

ELECTRICAL LIFTING AND TILTING WITH DIGITAL DISPLAY OF ANGLE
MOTOR OF MAIN SAW: 5.5KW(6.5KW IS OPTIONAL). MOTOR OF GROOVING SAW: 1.1KW

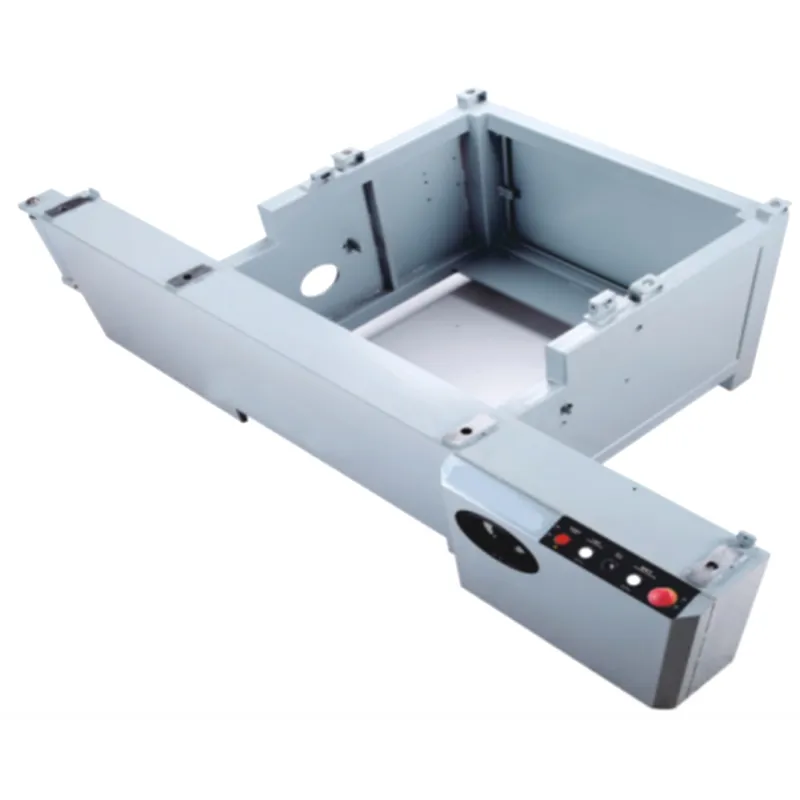

THE 6MM-10MM STEEL PLATE IS WELDED TO THE SQUARE TUBE LOAD-BEARING BEAM
MANUAL SCALING-OFF, ACCURACY: ±0.1MM

Model	HM-45X
Main saw blade max. diameter	350mm
Main saw blade min. diameter	250mm
Main saw blade thickness	3.2mm
Main saw shaft diameter	30mm
Groove saw blade max. diameter	120mm
Groove saw shaft diameter	20mm
Main saw motor power	5.5kw(6.5kw is optional)
Groove saw motor power	1.1kw
Main spindle rotate speed	4000/5000rpm
Groove saw shaft speed	8200rpm

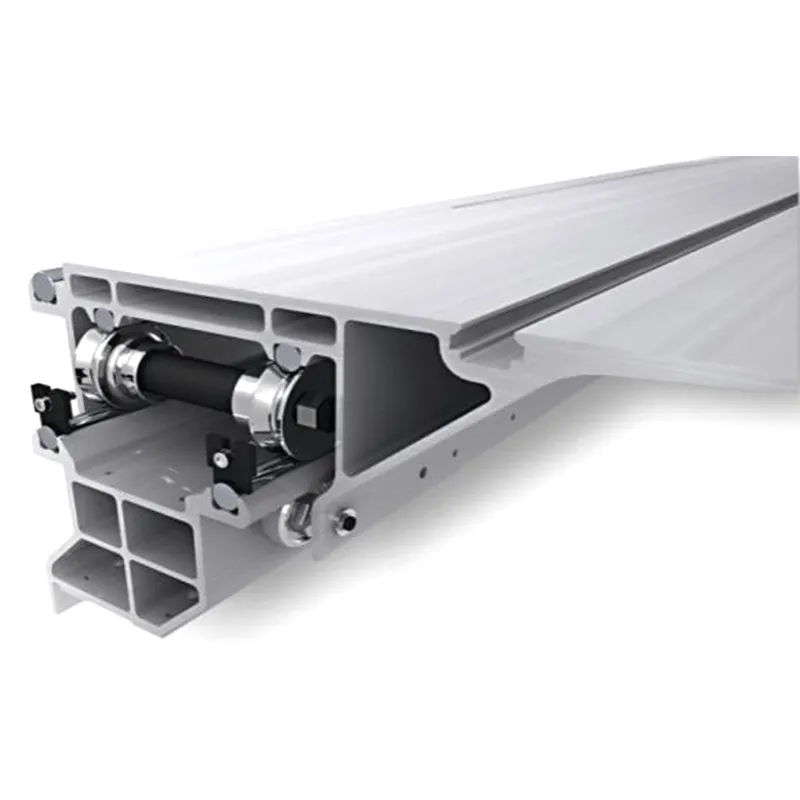

Sliding table max. sawing length	3100mm
Saw blade tilt range	0-45 °
Main motor lifting power	55W
Angle motor power	25W
Machine weight	850Kg
