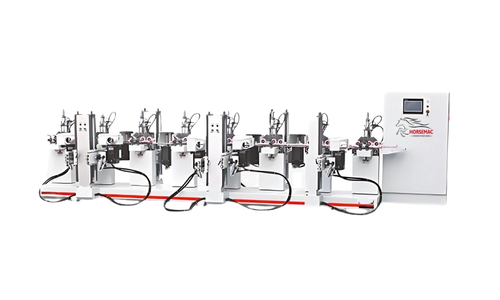

Door Casing Sanding Machine

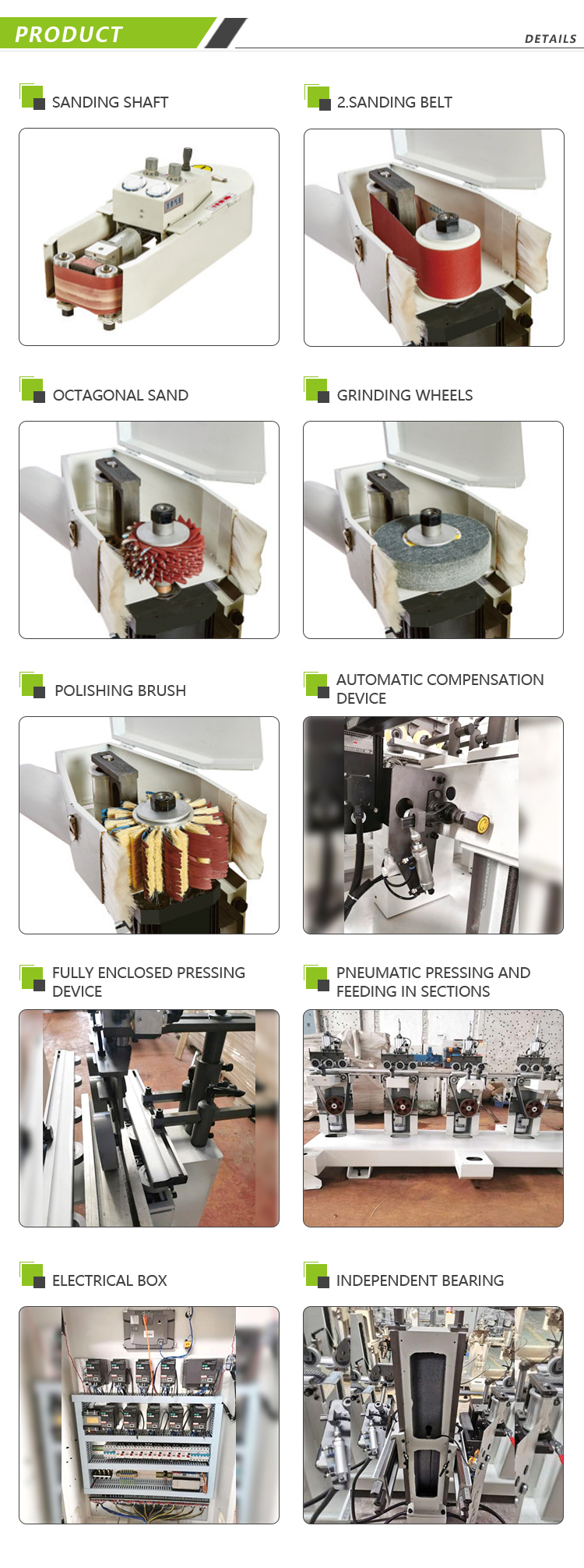

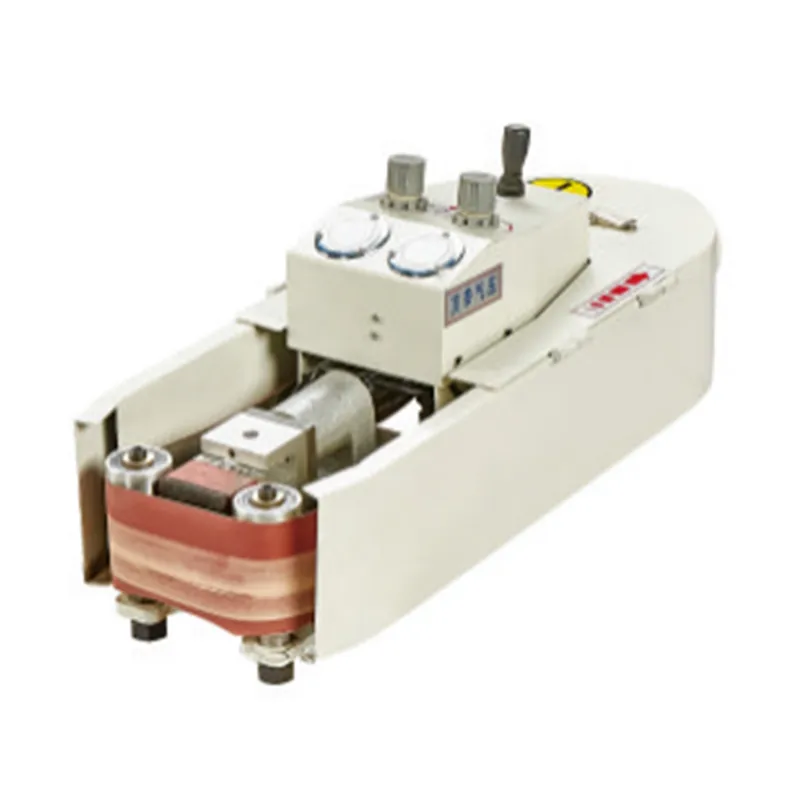

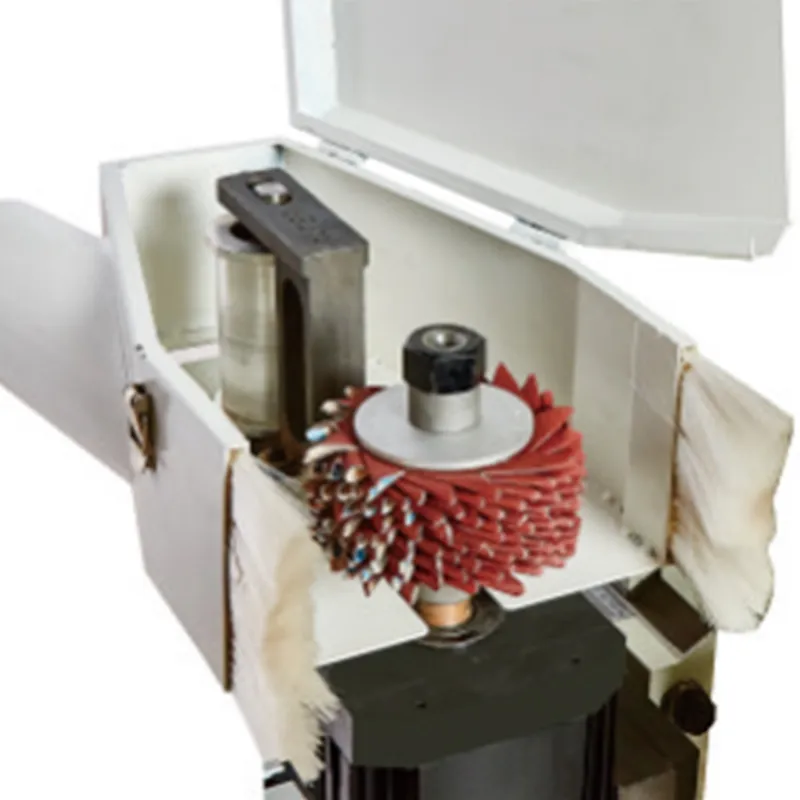

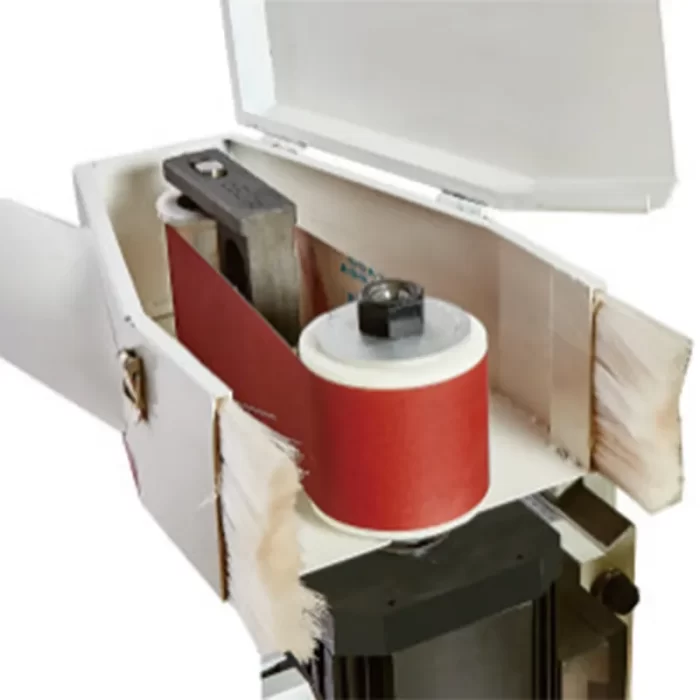

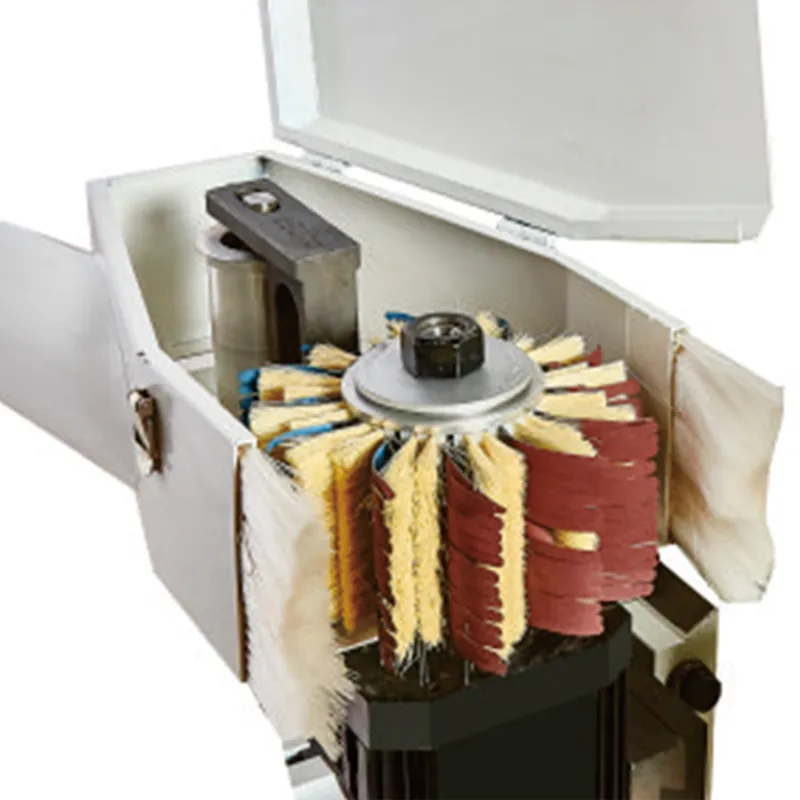

NINE DUAL-PURPOSE SANDING WHEELS (SANDING BELTS, OCTAGONAL SAND, AND POLISHING BRUSH CAN BE INSTALLED)

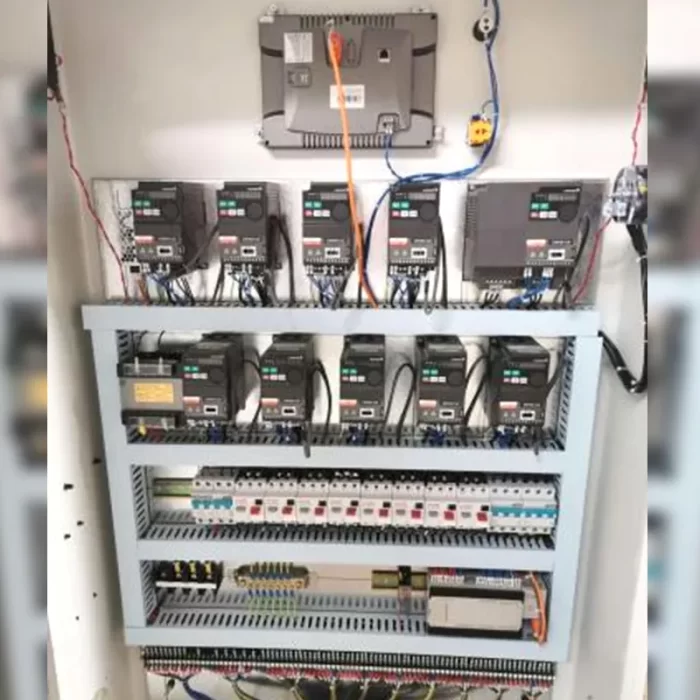

FREQUENCY SPEED REGULATION OF SANDING WHEEL AND CONVEYOR BELT FEEDING

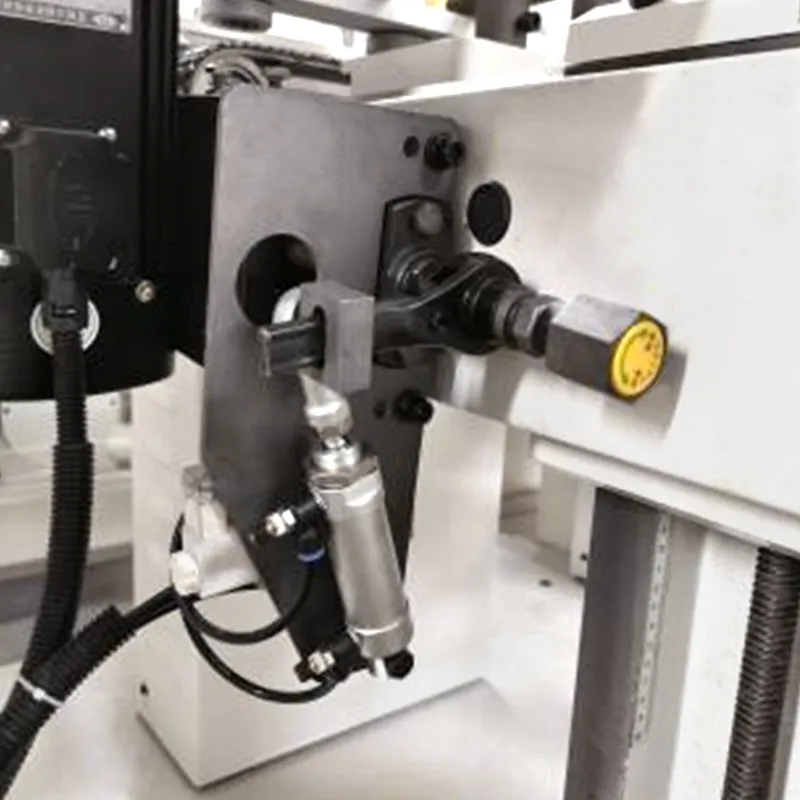

THE SANDING WHEEL ADOPTS AUTOMATIC COMPENSATION DEVICE WITH ACCURACY 0.04MM/TIME
PNEUMATIC SEGMENTED PRESSING, TOUCH SCREEN CONTROL SYSTEM
THE ANGLE OF SANDING WHEELS CAN BE ADJUSTED

Model	HM-W9
Width of the workpiece	10-230mm
Min. workpiece length	500mm
Workpiece thickness range	3-80mm
Feed speed	3-40m/min (Frequency)
Feed motor power	0.55kw*8
Sand frame speed	300-1440r/min (Frequency)
Sand frame angle	Adjustable
Sand head spindle motor power	1.5 kw*9
Number of head spindle configurations	9 sets(PLC grinding wheel automatic compensation)
Automatic compensation device	9 sets, Compensation amount 0.04mm/time
Spindle size (shaft diameter * length)	Φ25.4100mm7 Φ25.4150mm2

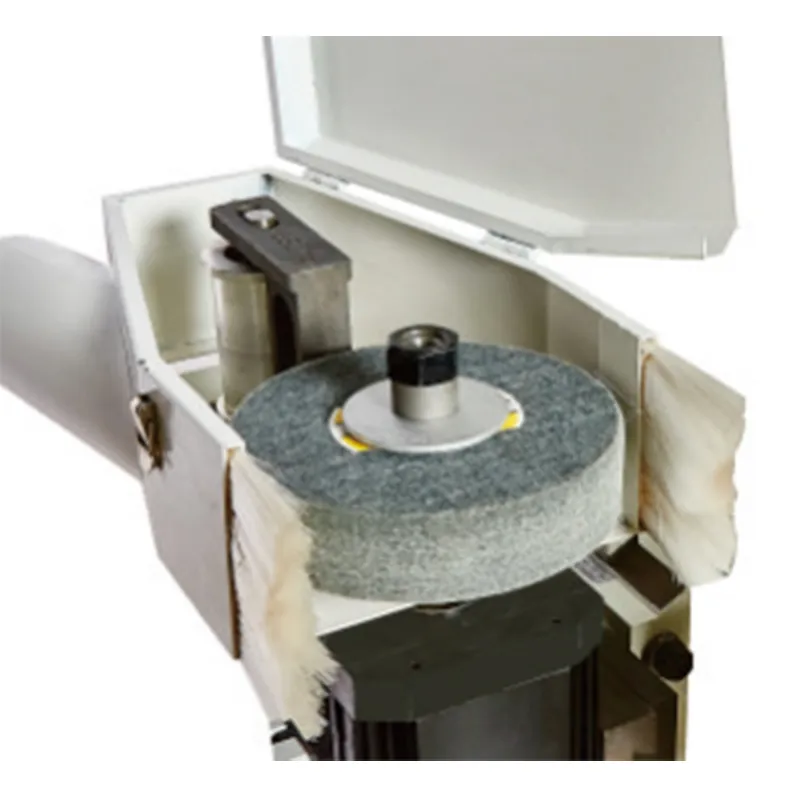

Grinding wheel size (outer diameter)	200mm
Dust collector diameter	100mm
Working air pressure	0.2-0.6Mpa
Power supply	380V;50hz，three-phase five-wire
Total power	17.9kw
Overall dimension	630016001650mm
Weight	2300kg
