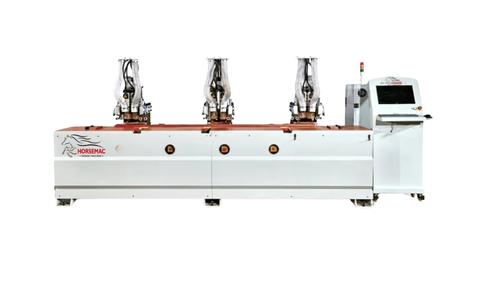

Door Jamb Lock And Hinge Machine

THIS MACHINE IS A CONTINUOUS LONGITUDINAL PASS-THROUGH DOOR HINGE AND LOCK MACHINE

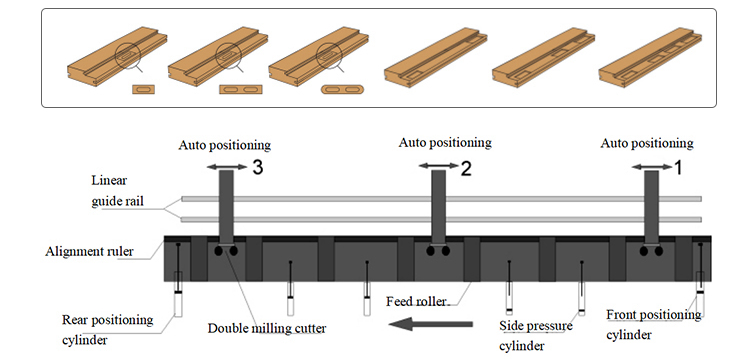

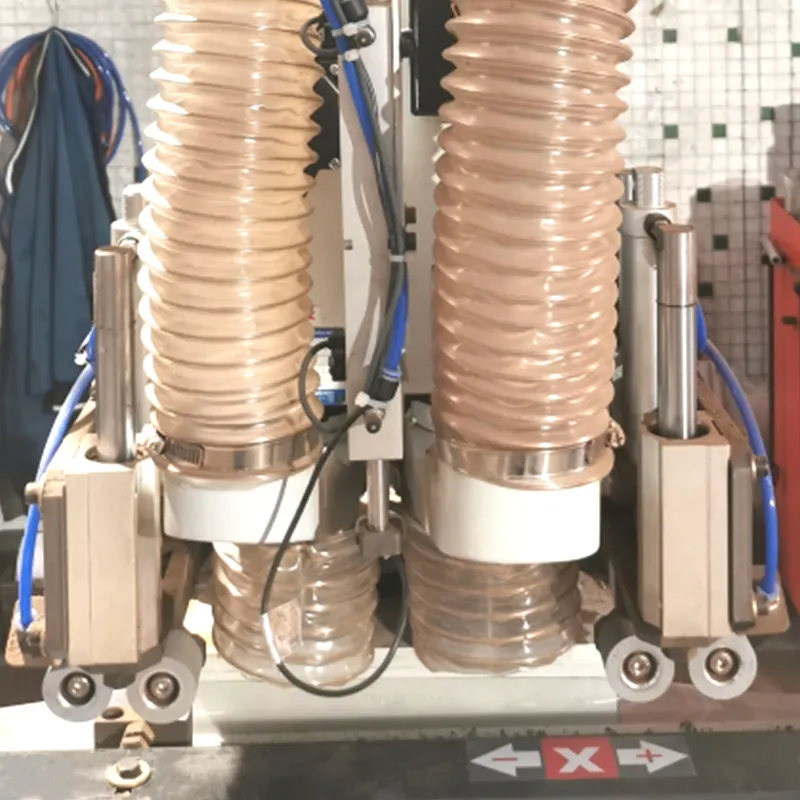

THREE SETS OF DOUBLE-HEAD MILLING HEADS WITH TWO MILLING CUTTERS ON EACH HEAD; A LARGE MILLING CUTTER 2.2KW FOR MILLING HINGES AND KEYHOLE
A SMALL MILLING CUTTER 2.2KW FOR ROUNDING THE CORNERS OF HINGES AND LOCK HOLES; 3 MILLING HEADS POSITIONING AND MOVING CONTROLLED BY SERVO MOTORS
THE LENGTH OF THE DOOR JAMB, THE QUANTITY AND SIZES OF HINGES, AND THE POSITION AND SIZE OF THE KEYHOLE CAN BE MANUALLY INPUT DATA OR BAR CODE SCANNED; WITH AUTOMATIC THICKNESS MEASUREMENT FUNCTION

Model	HM-X6
Work width	80-400mm
Work length	600-2500mm
Work thickness	10-80mm
Feed speed	3-15m/min (VFD)
Feeding motor power	2.2kw
Spindle motor power	1.5kw3+2.2kw2 +3kw*1
Spindle speed	18000r/min
Milling cutter size (outer diameter)	2-20mm
Dust outlet diameter	97mm*6pcs

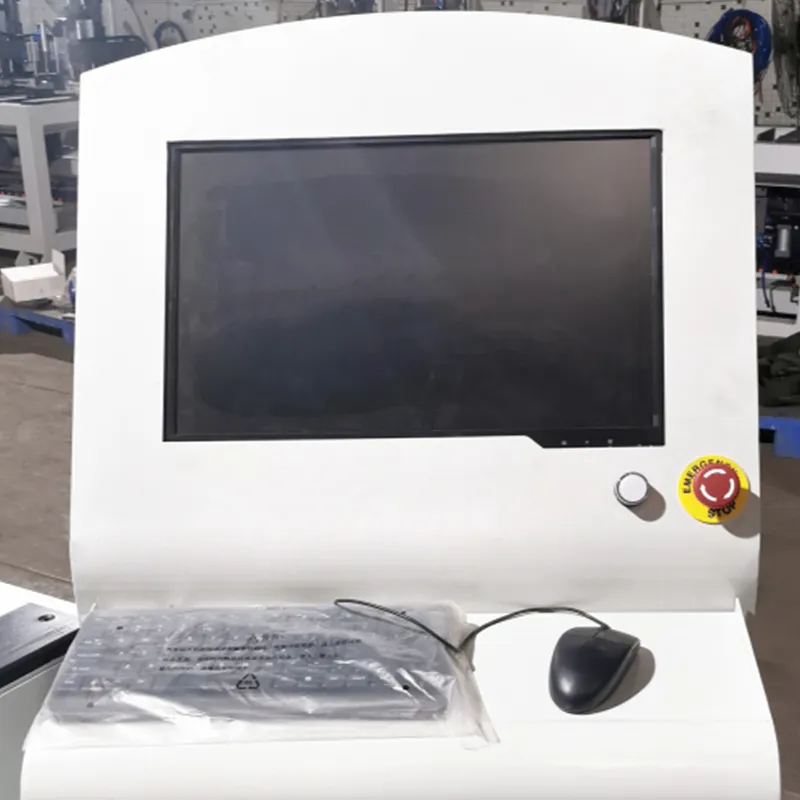

Touch screen+servo drive	Taiwan Shilin
Voltage	380V 50Hz 3P
Total power	15.4kw
Dimensions	370016001500mm
Weight	2000kg
