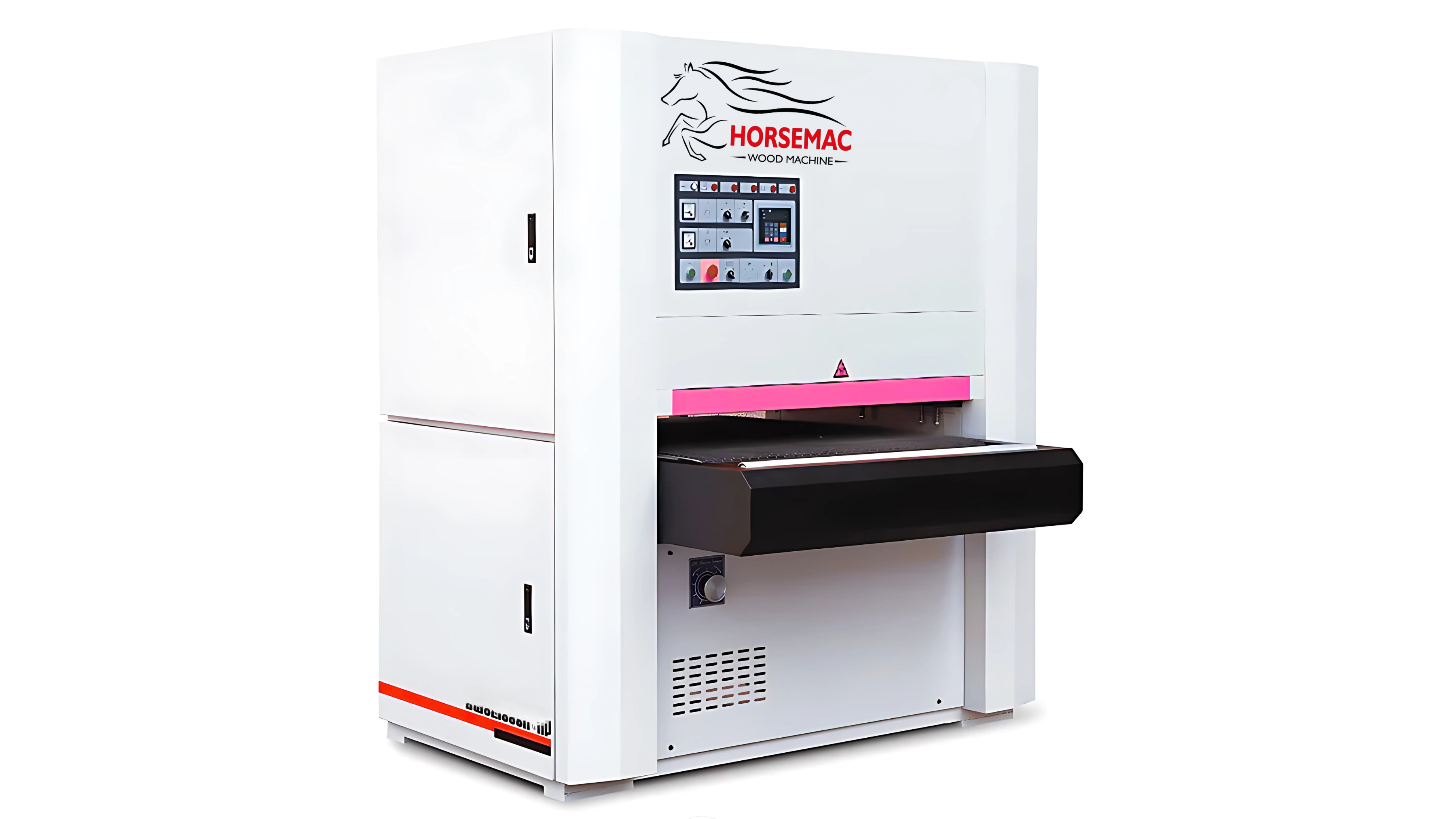

Double Heads Wide Belt Sanding Machine

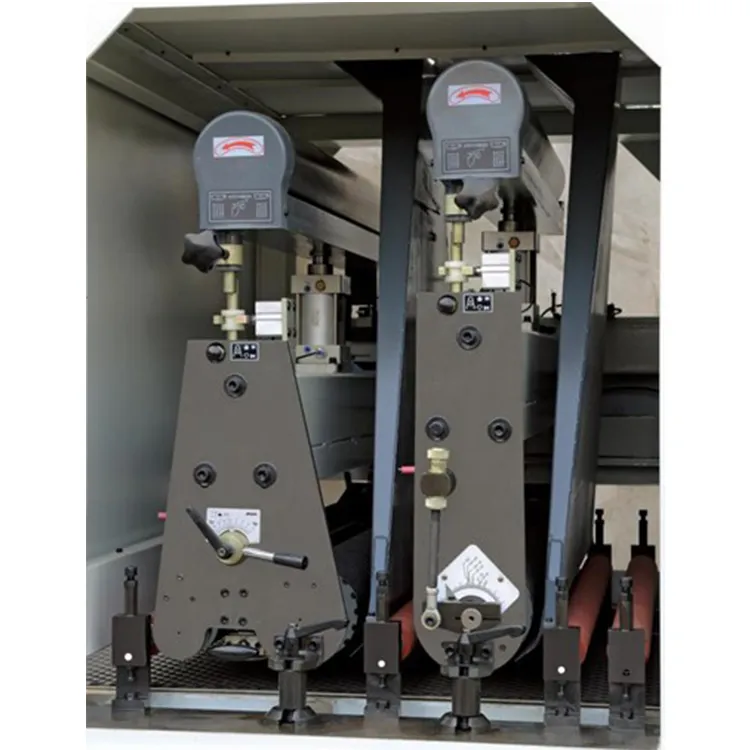

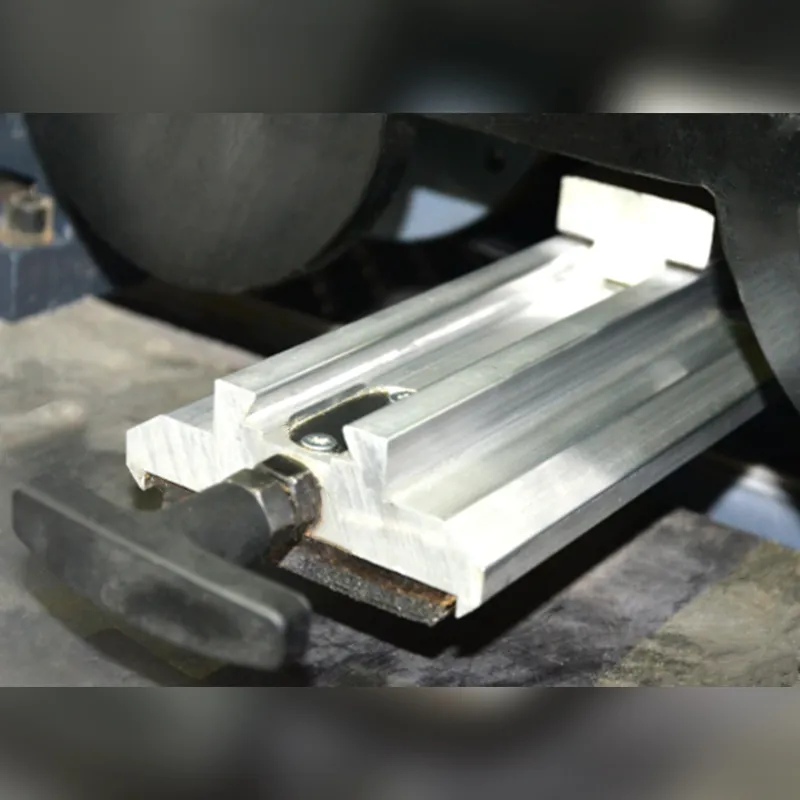

- STEEL ANDÂ RUBBER ROLLERS PLUS PAD CONFIGURATION IS GOOD FOR CALIBRATING AND FINE SANDING

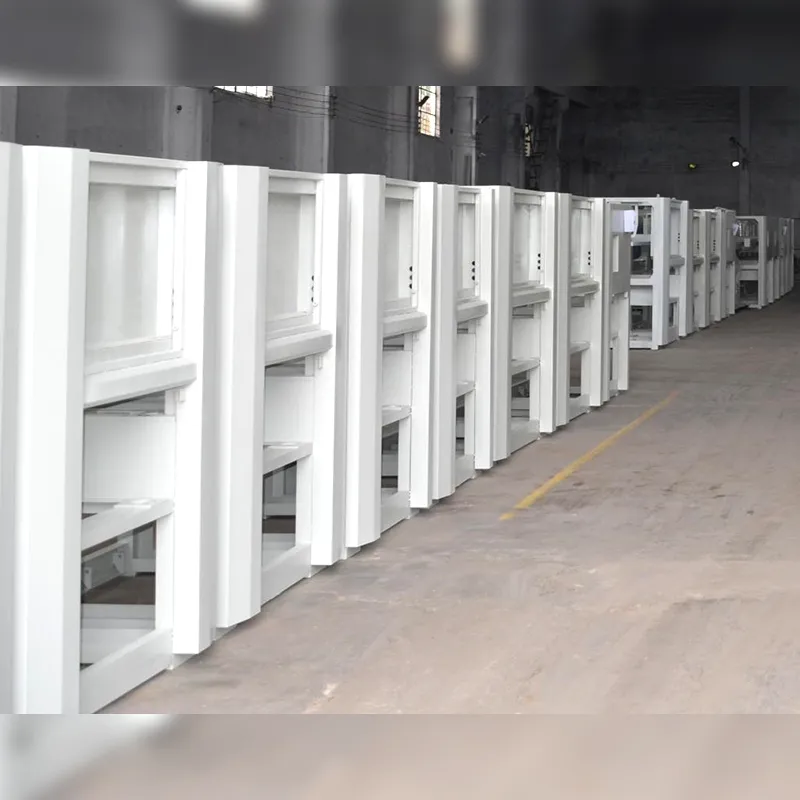

- HARDENING TREATMENT MACHINING CENTER TO PROCESS THE MACHINE FRAME
- ASSEMBE DYNAMICALLY BALANCED ROLLERS ON THIS MACHINE AND OTHER GOOD QUALITY PARTS, ALL OF THESE TO ENSURE THE ENTIRE MACHINE HAS HIGH PRECISION AND LONG TERM RELIABILITY

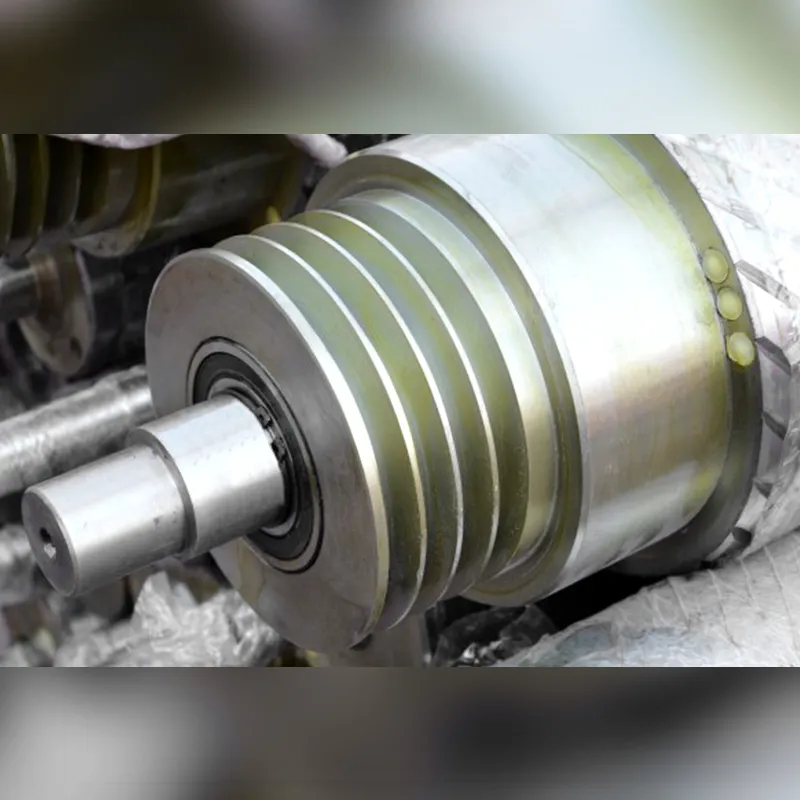

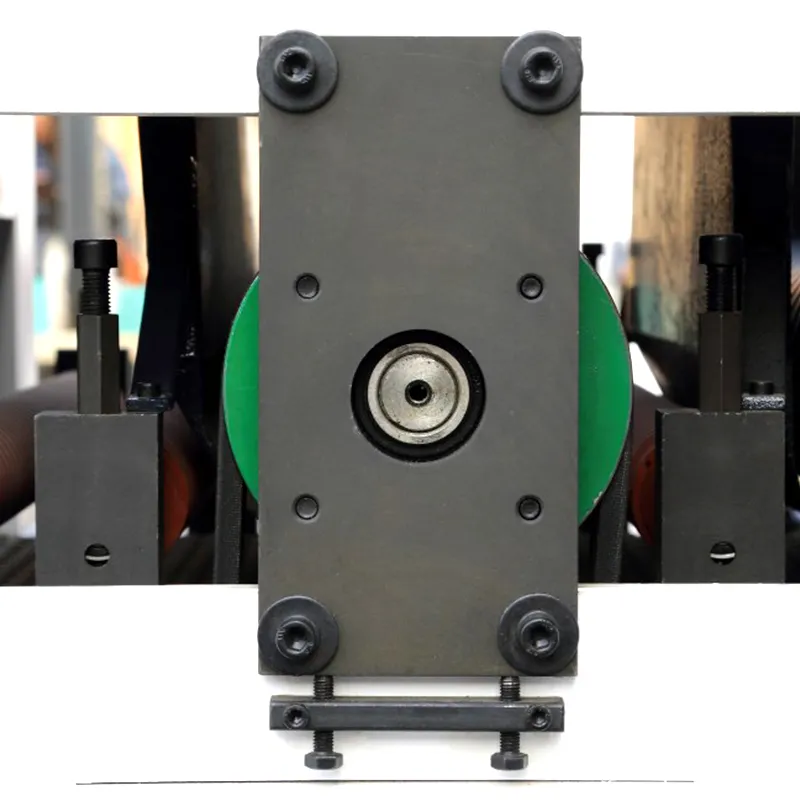

- FIRST SHAFT IS ECCENTRIC SHAFT. LIFTING CONTROL BY PNEUMATIC TURN-OVER IS EASY TO OPERATE
| Model | RWSE630R-RP | RWSE1000R-RP | RWSE1300R-RP |
| Working width | 40-630mm | 40-1000mm | 40-1300mm |
| Working thickness | 2-100mm | 2-100mm | 2-100mm |
| Working length | ≥380mm | ≥380mm | ≥510mm |
| Feeding speed | 0-18m/min RV frequency | 0-18m/min RV frequency | 0-18m/min RV frequency |
| Size of sanding belt | 650*1900mm | 1020*2000mm | 1320*2200mm |
| Feeding motor power | 1.5KW | 1.5KW | 4kw |
| Lifting motor power | 0.37KW | 0.37KW | 0.55kw |
| #1 sanding shelf | ø165mm steel, 11kw | ø165mm steel, 15kw | ø190mm steel, 30kw |
| #2 sanding shelf | 85sh ø140mm, rubber, 7.5kw | 85sh ø140mm, rubber, 11kw | 85sh ø165mm, rubber, 22kw |
| Sanding belt (cloth) | 80/120 Mesh | 80/120 Mesh | 80/120 Mesh |
| Total motor power | 20.37kw | 27.87kw | 56.55kw |
| Working air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| Air dust collect | 8200m³/h | 8200m³/h | 8200m³/h |
| Overall dimensions | 1862*1270*2100mm | 1960*1675*2100mm | 2262*2020*2300mm |
