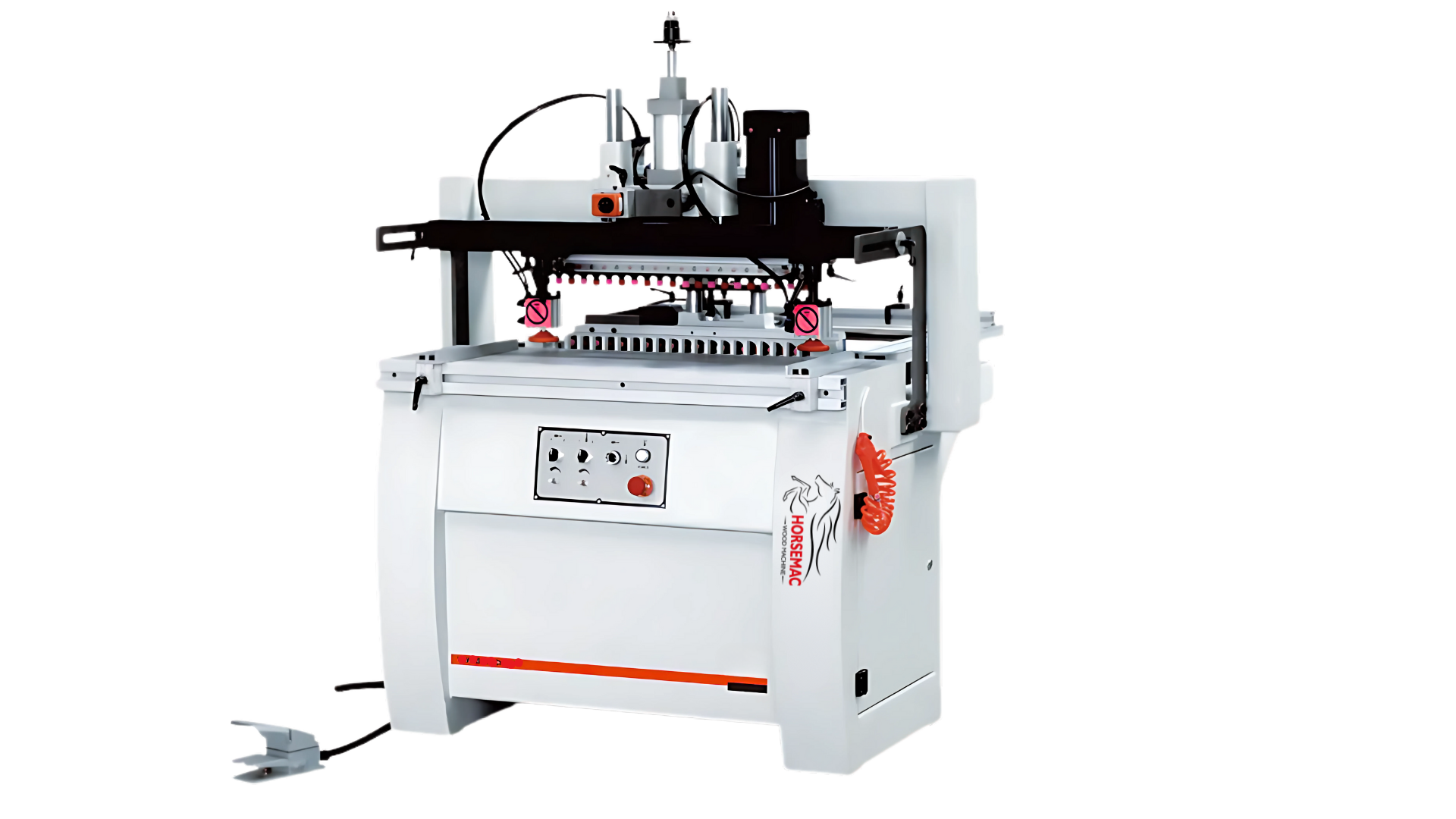

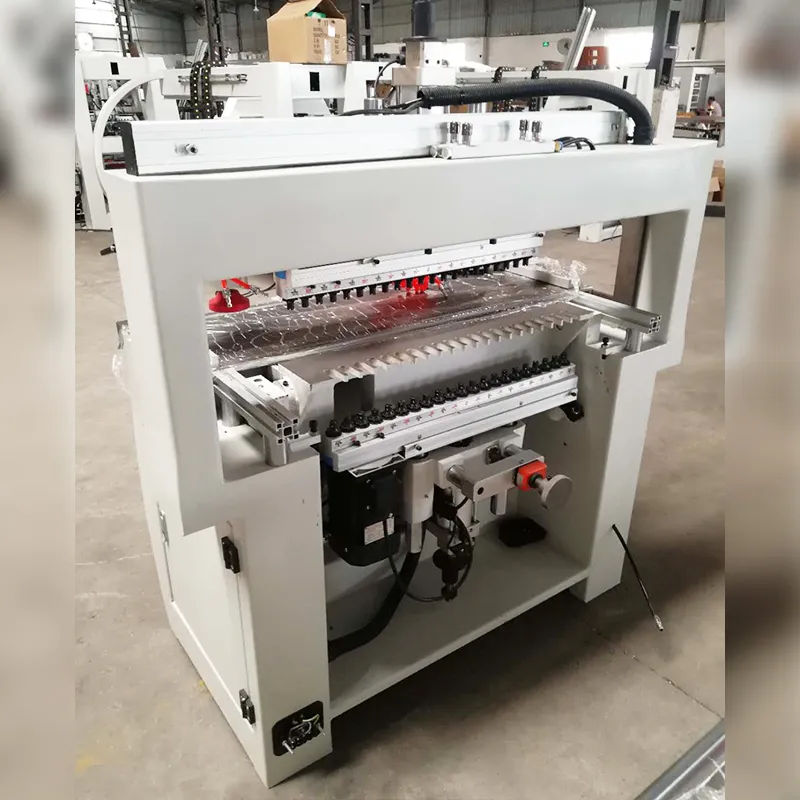

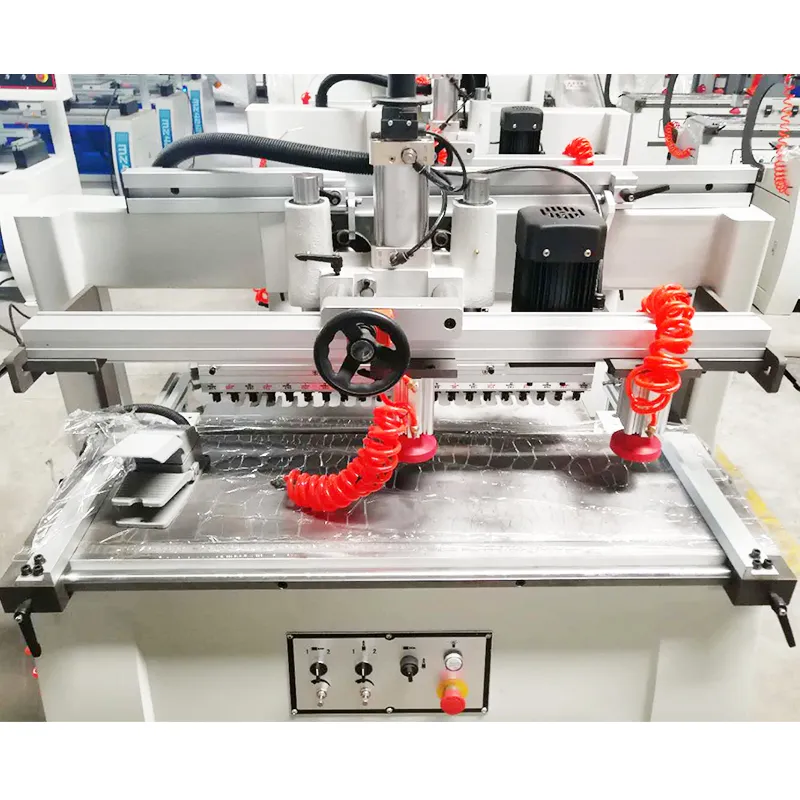

Double Rows Drilling Machine

THE MACHINE IS A POROUS PROCESSING MACHINERY WHICH CAN TILT 0 ~ 90
IT CAN SELECT APPROPRIATE CUTTING FEED SPEED AND ADJUSTED DRILLING DEPTH BY ADJUSTABLE AIR FLOW BASED ON DRILLING HOLE SIZE AND PLATE HARDNESS

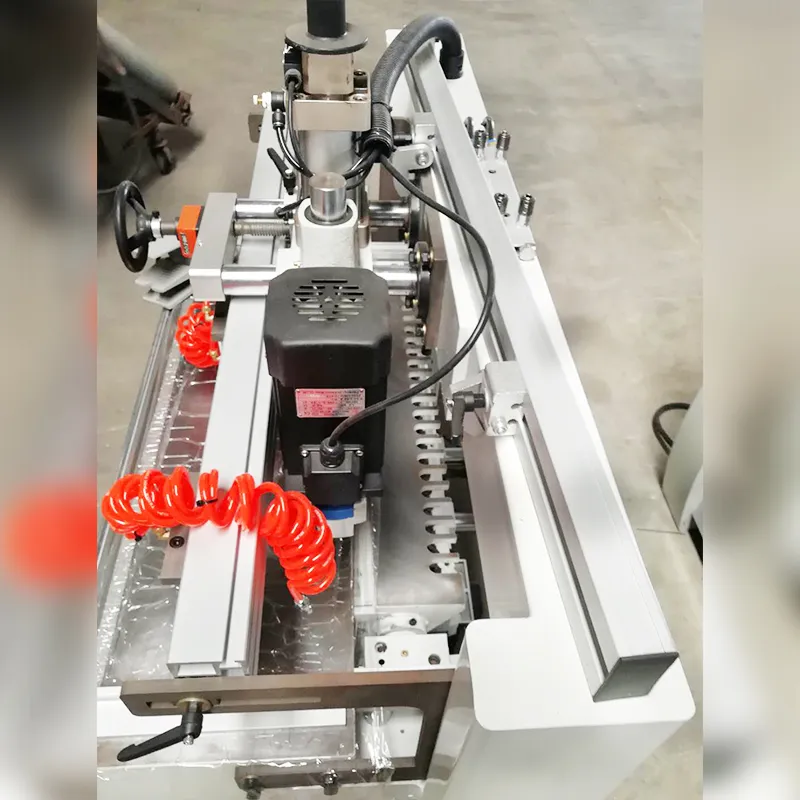

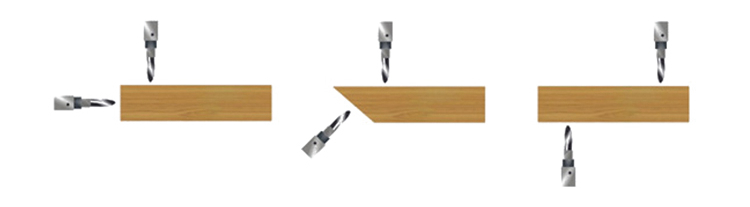

IT CAN DRILL BOARD IN VERTICAL AND HORIZONTAL DIRECTION AT THE SAME TIME, CONVENIENT AND FLEXIBLE OPERATION, MULTI-USAGE, HIGH EFFICIENCY, LARGE DIMENSION PLATES
IT IS A INDISPENSABLE EQUIPMENT IN FURNITURE FACTORY, CABINET FACTORY AND OTHER WOOD COMPANY

Model	HM-2B
Max. center distance between holes	600mm*640mm
Min. center distance between holes	50mm*32mm
Workpiece thickness	8-50mm
Total quantity of spindles	21pcs*2
Total quantity of drill lines	2
Max. drilling diameter	35mm (single bit) 13mm(multi bits)
Max. drilling depth	50mm
Dia. of drill bit shaft	10mm
Installation tool length	57/70mm
Spindle speed	2840rpm
Total power	3kw
Net weight	650kg
Overall dimensions	130012001650mm
