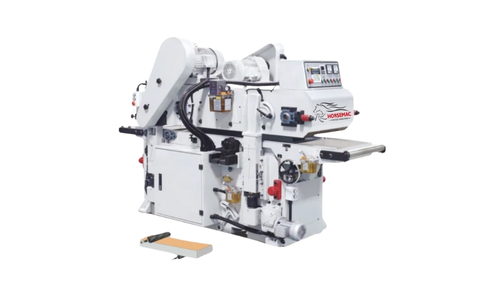

Double Sides Planer for B Series
- MACHINE FRAMES ARE ALL RESIN SAND CASTING TO AVOID ANY DEFORMATION

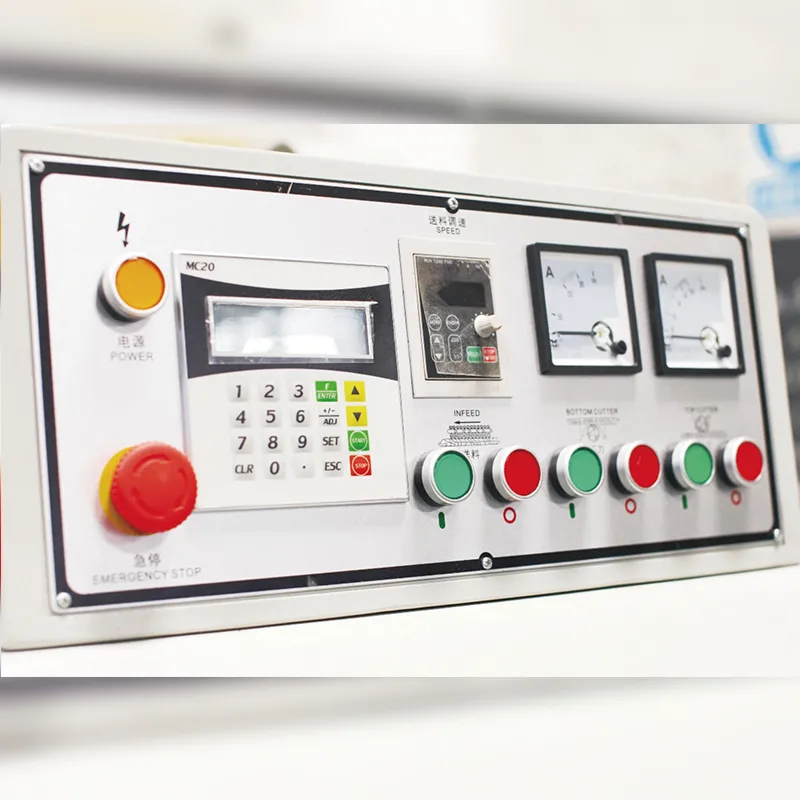

- VFD SPEED ADJUST
- SCHNEIDER ELECTRICAL ELEMENTS

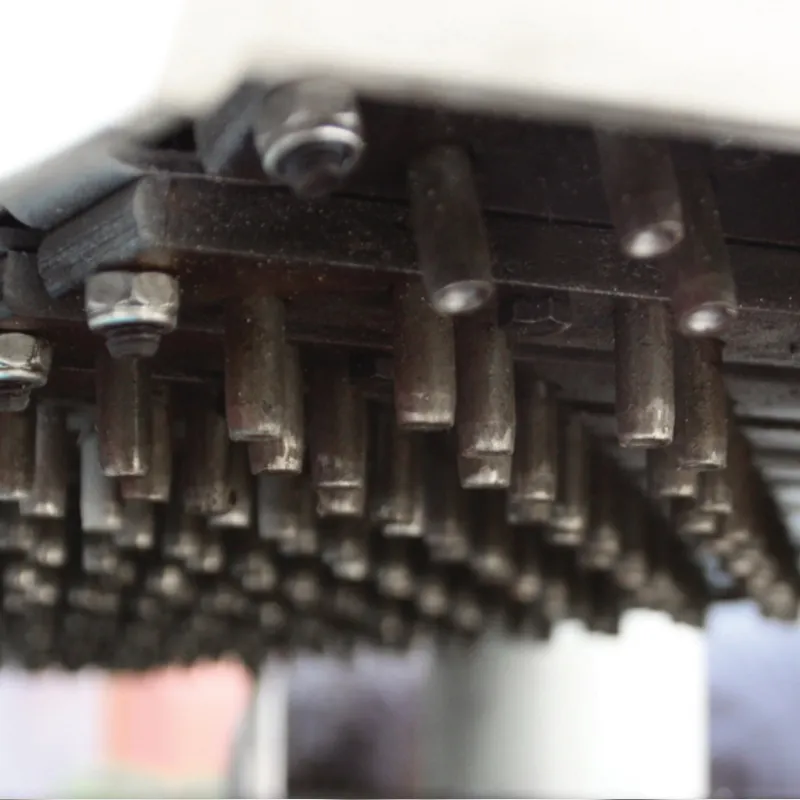

- PRESSURE PLATE FOR SHORT WORKPIECE
- AUTOMATIC LUBRICATION
| Model |
HM470B |
HM630B |
| Working thickness |
9-200mm |
9-200mm |
| Working width |
10-470mm |
10-630mm |
| Min. working length |
300mm(200mm) |
300mm(200mm) |
| Max. cutting depth |
Upper:5mm, Bottom:5mm |
Upper:5mm, Bottom:5mm |
| Cutting spindle dia. |
Ф100mm |
Ф100mm |
| Cutting spindle speed |
5000r/min |
5000r/min |
| Feeding speed |
7-13m/min |
7-13m/min |
| Top Spindle Power |
7.5kw |
15kw |
| Bottom spindle Power |
5.5kw |
7.5kw |
| Feeding motor power |
2.2kw |
2.2kw |
| Lifting motor power |
0.37kw |
0.37kw |
| Total power |
15.57kw |
25.07kw |
| Dust exit dia. |
Ф150mm |
Ф150mm |

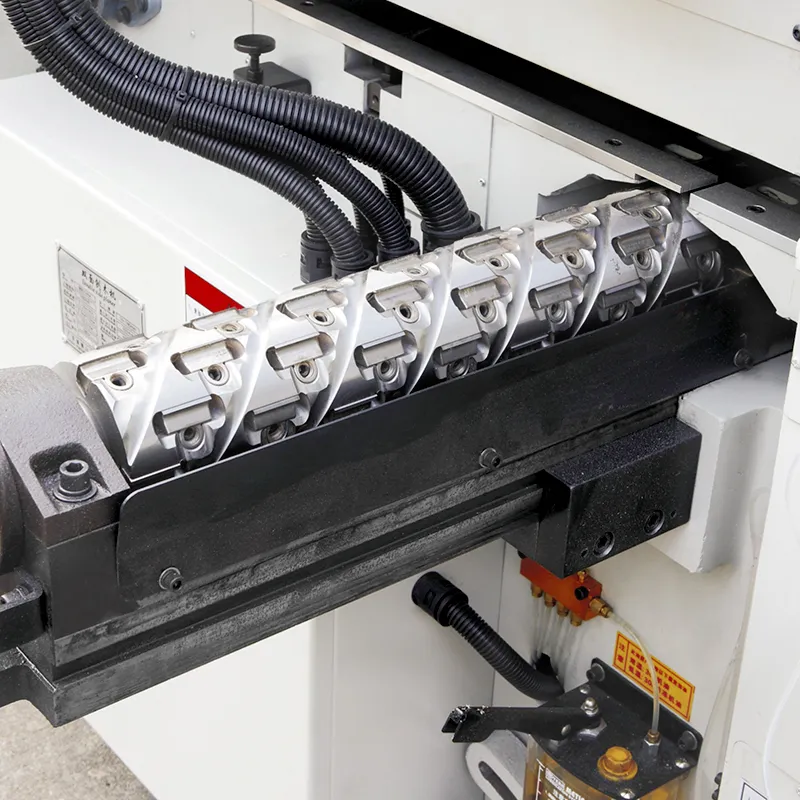

| Cutter Head |
Spiral |
Spiral |
| Overall size(mm) |
2650*980*1800mm |
2650*1150*1800mm |
| Net weight |
2200kg |
2600kg |
