Dust Collector

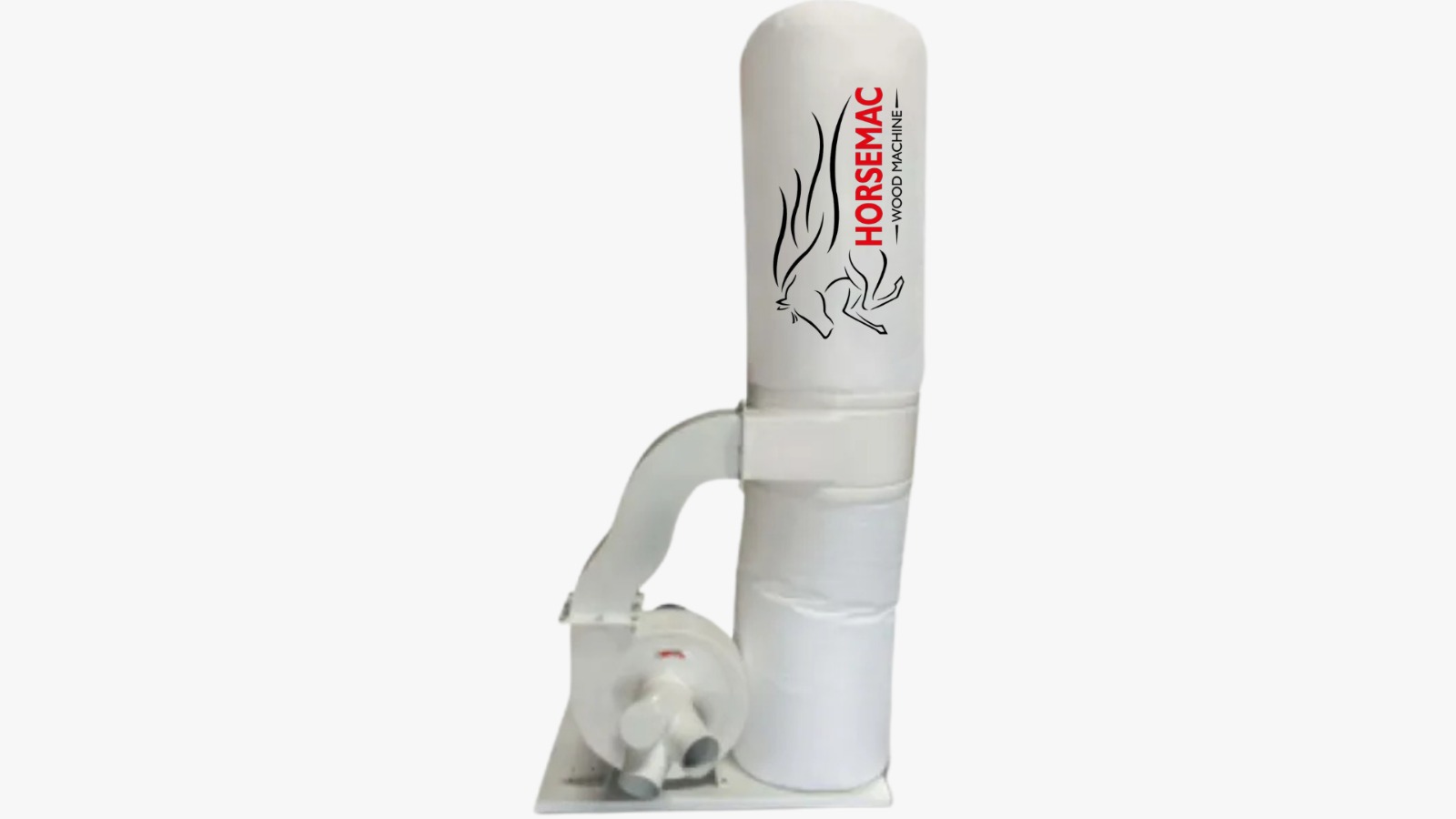

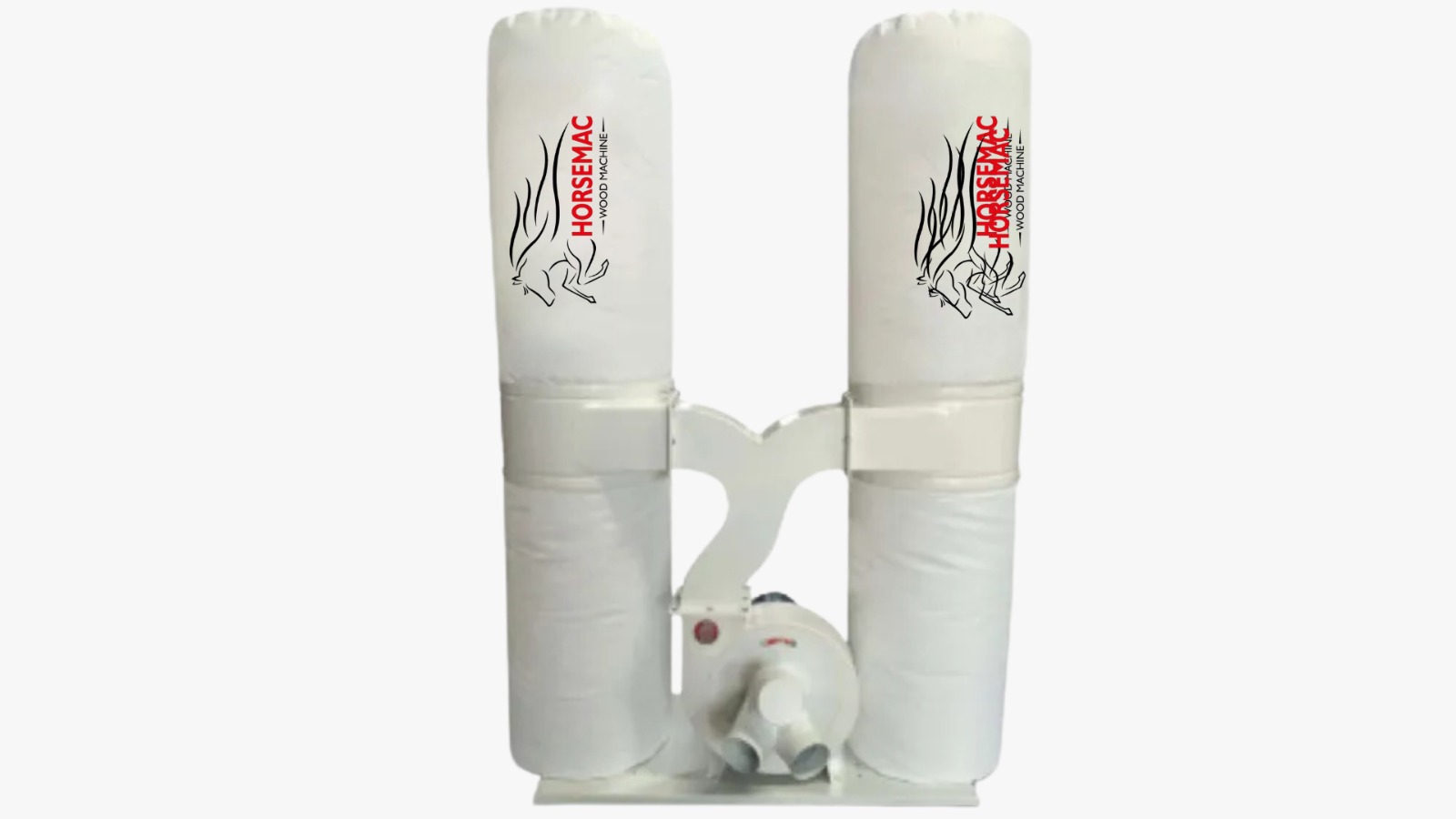

| Model | HM9022 | HM9030 | HM9040 |
| Motor power | 2.2kw | 3kw | 4kw |
| Air delivery | 2350m3/h | 3150m3/h | 4450m3/h |
| Air speed | 20~25m/sec | 35~40m/sec | 35~40m/sec |
| Intake size | ø100mm*3pcs | ø100mm*3pcs | ø100mm*4pcs |
| Collector bag | ø480mm*2pcs | ø480mm*4pcs | Ø630mm*4pcs |
| Overall size | 960*560*2000mm | 1200*560*2000mm | 1450*735*2200mm |
| Net weight | 50kg | 65kg | 95kg |
| Gross weight | 55kg | 70kg | 105kg |

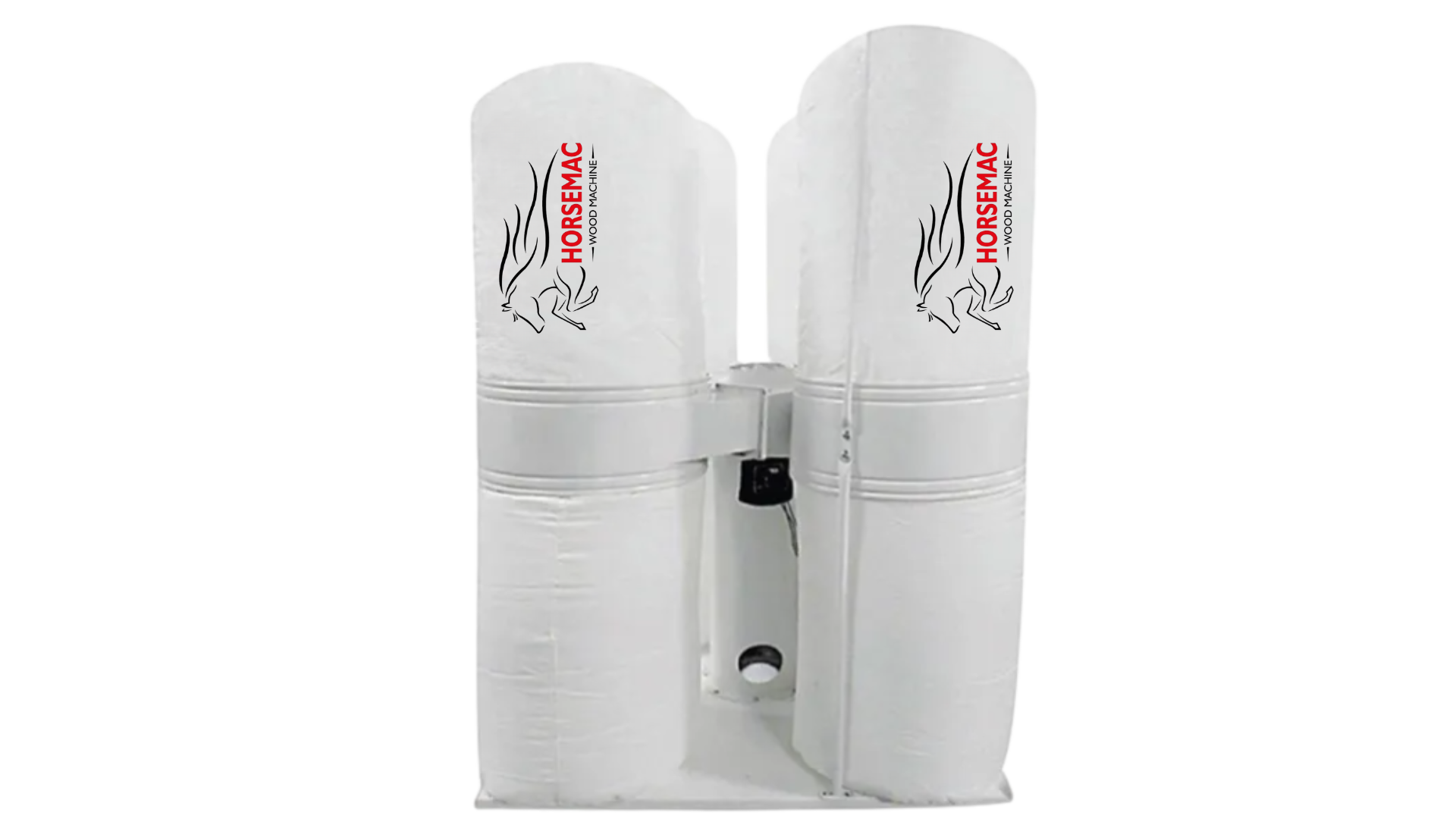

| Model | RXC9055 | RXC9075A |
| Motor power | 5.5kw | 7.5kw |
| Air delivery | 8000m3/h | 9000m3/h |
| Air speed | 40~45m/sec | 40~45m/sec |
| Intake size | ø100mm*6pcs | ø100mm*6pcs |
| Collector bag | Ø630mm*4pcs | Ø630mm*8pcs |
| Overall size | 1450*735*2200mm | 1500*1500*2250mm |
| Net weight | 115kg | 207kg |
| Gross weight | 125kg | 218kg |
