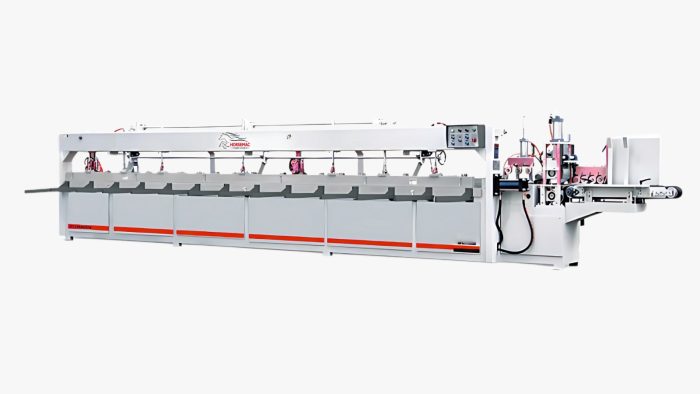

Finger Joint Machine
- ADOPTS LONG+SHORT DOUBLE PUSHING BOARD DESIGN, IT CAN ASSEMBLE VERY SHORT WORKPIECE TO REDUCE THE COST

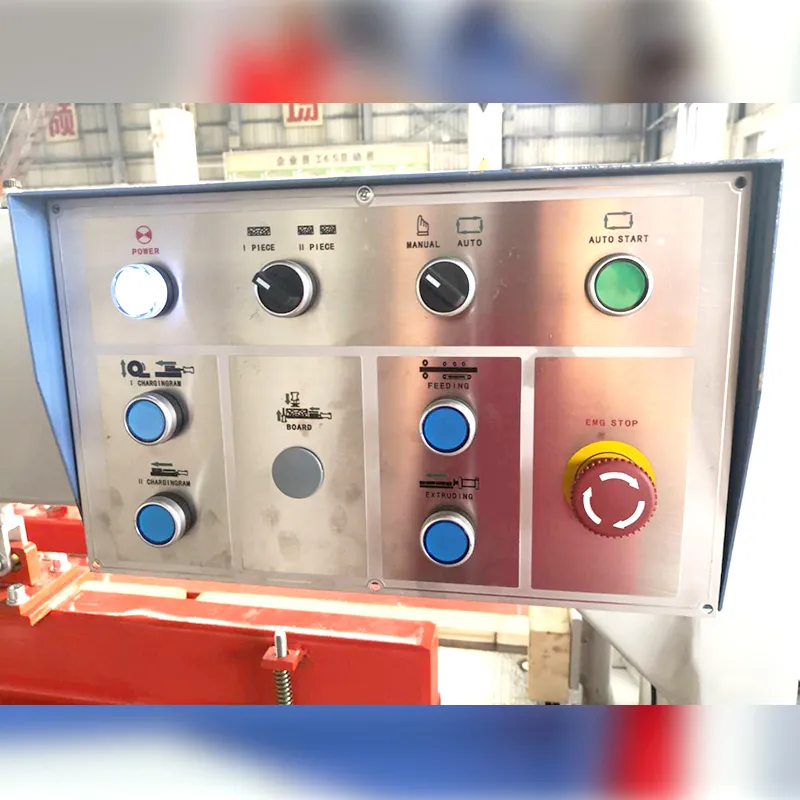

- CONTROLLED BY PLC, BOASTS STREAMLINED EXECUTION, RELIABLE CONTROL AND SIMPLE OPERATION
- AUTOMATIC FEEDING AND 6.28 METER LENGTH CAN BE JOINTED
- INVERTER ADJUST INFEED SPEED IS OPTIONAL
| Model | HM1562A |
| Joint length | 2000-6280mm |
| Joint width | 30-150mm |
| Joint thickness | 15-80mm |
| Rotating speed of saw blade | 3700r/min |
| Diameter of saw blade | Φ400mm |
| Rated power of saw motor | 3kw |
| Rated power of oil pump | 2.2kw |
| Air pressure of working | 0.5-0.8Mpa |
| Max. engaging force | 7800kg |
| Max. feed speed | 30m/min |
| Overall dimension | 8300*1650*1600mm |
| Net Weight | 2650kg |
