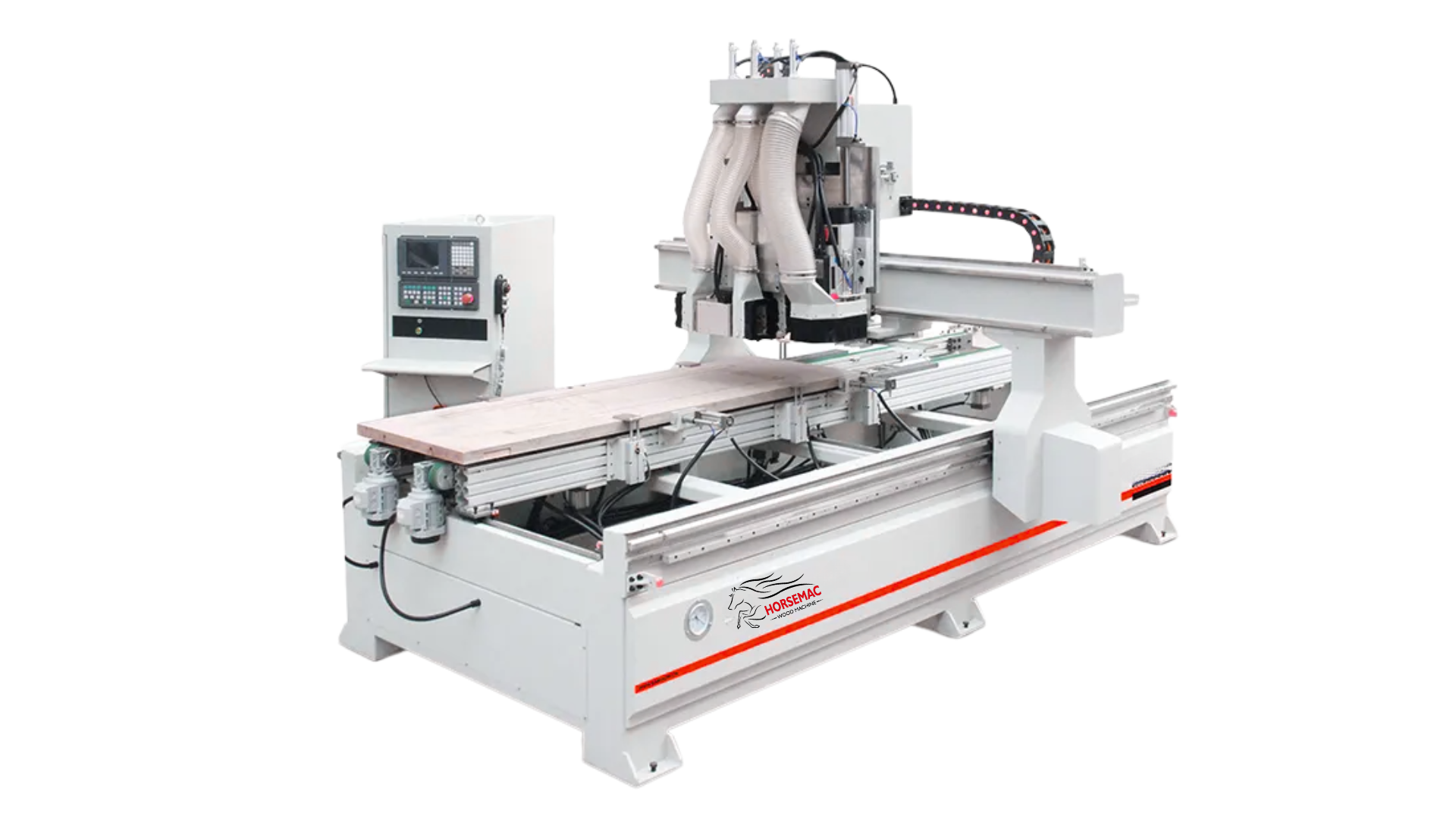

Full Automatic Door Machining Center
- SUITABLE FOR DOOR SURFACE CAVING, HINGE, AND LOCK HOLE

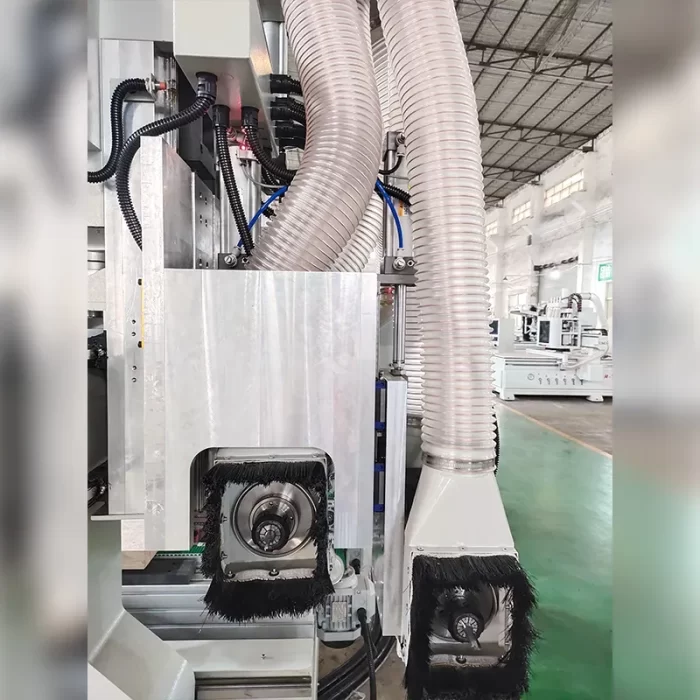

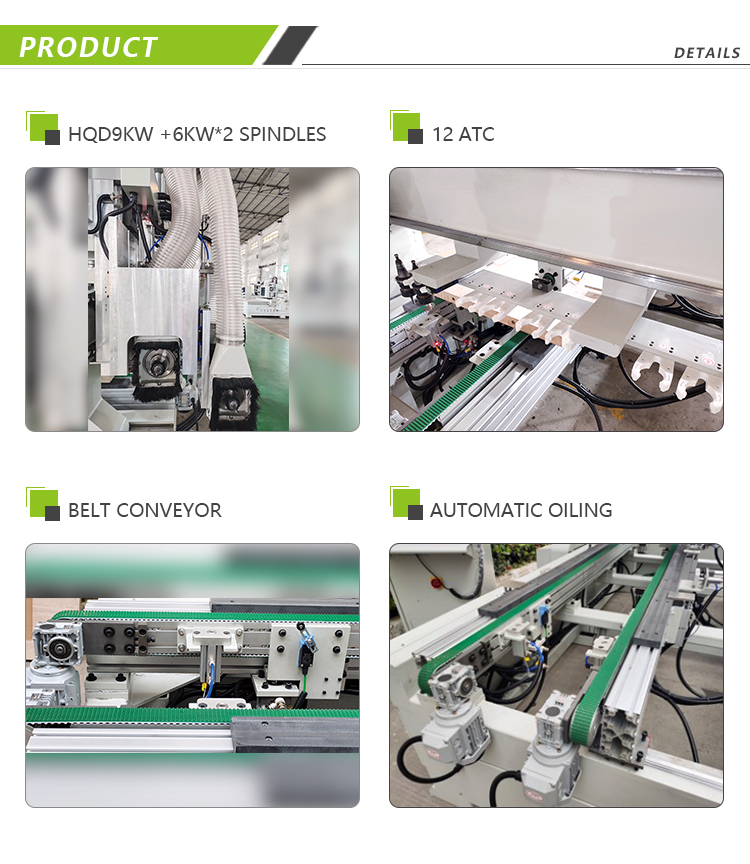

- 3 POWERFUL SPINDLES FOR MILLING AND DRILLING

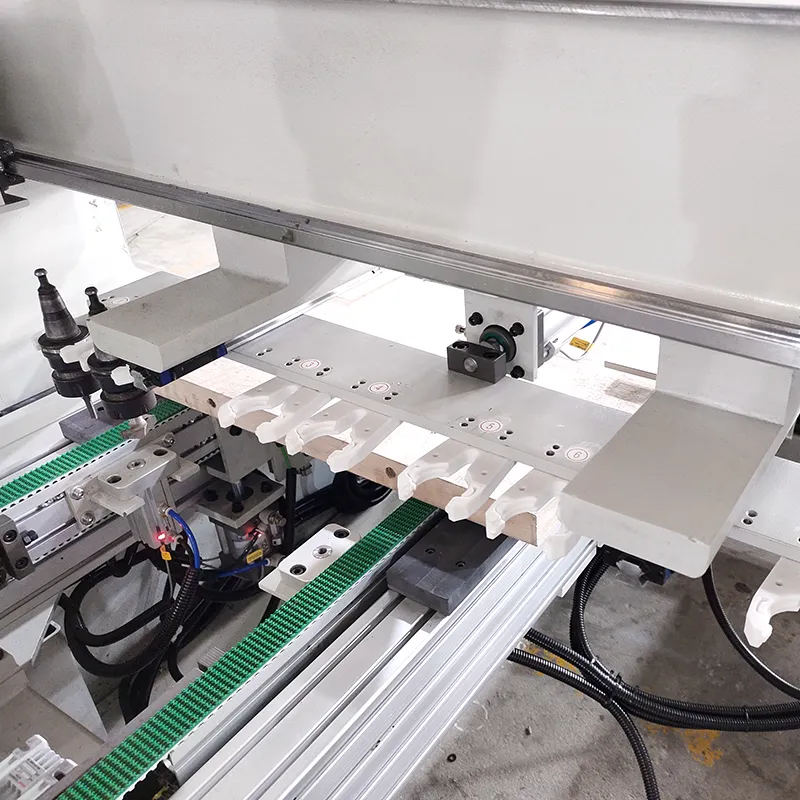

- 12 AUTOMATIC TOOL CHANGE BANK FOR DIFFERENT TOOLS
- SERVO MOTOR DRIVE SYSTEM TO GET A PRECISION POSITIONING
- ONE MACHINE CAN ACHIEVE ANY FUNCTIONS FOR DOORS, SAVE FACTORY SPACE
| Model | HM-1325CNC |
| Work stroke | 1300*2500*180mm |
| Spindle power | Domestic HQD9kw +6kw*2 |
| Rotation speed | 18000r/min |
| Drive system | Japan Yaskawa 850W servo and driver |
| Inverter | Fulling 11kw |
| ROUST guide rail | X / Z axis: 25mm; Y axis: 30mm |
| Positioning cylinder | Y axis: 2 sets; X axis: 2 sets |
| Clamp cylinder | X+Y axis: 6 pcs |
| Tool change device | 8 tools automatic change (row type) |
| Cover | Small cover |
| Operation instruction | G-code, *.NC |
| Operation system | Syntec all in one control system 6MB-E, including display |
