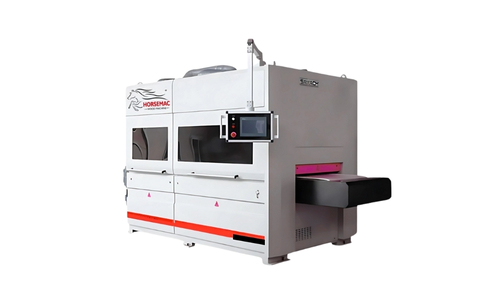

Metal Sanding Machine with STR-W-r Series

THE MACHINE IS CAPABLE OF EFFICIENT DE-SLAGGING AND EDGE ROUNDING OF MEDIUM-THICK METAL PARTS AFTER OXY-FUEL, PLASMA, OR HIGH POWER LASER CUTTING PROCESSES
THE WIDE ABRASIVE BELT HEAD IS CAPABLE OF SANDING DOWN AND REMOVING THE BIGGER BURRS ON THE PARTS, OR USING IT FOR WHOLE SURFACE FINISHING
EFFICIENT AND CLEAN PROCESSING CHARACTERISTICS ARE SUITABLE FOR THE WORKPIECE TO ENTER THE NEXT PROCESS SUCH AS HEMMING, SURFACE SPRAYING AND WELDING

Model	HM100R-W-r	HM130R-W-r
Effective processing width	1000mm	1300mm
Processing thickness	0.5-100mm	0.5-100mm
Linear speed of contact roller	3-16m/s Frequency	3-16m/s Frequency
Abrasive belt size	2000*1020mm	2200*1320mm
Transfer speed	0.5-5m/min Frequency	0.5-5m/min Frequency
Brush roller speed	876r/min Frequency	876r/min Frequency
Brush roller revolution speed	14.6r/min Frequency	14.6r/min Frequency
Number of brush rollers	6 pcs	8 pcs
Contact roller motor power	18.5kw	22kw
Brush roller motor power	2.2kw1, 1.5kw2pc	2.2kw*4 pcs
Brush roller revolution motor power	0.75kw	0.75kw
Brush roller lifting motor power	0.25kw	0.25kw

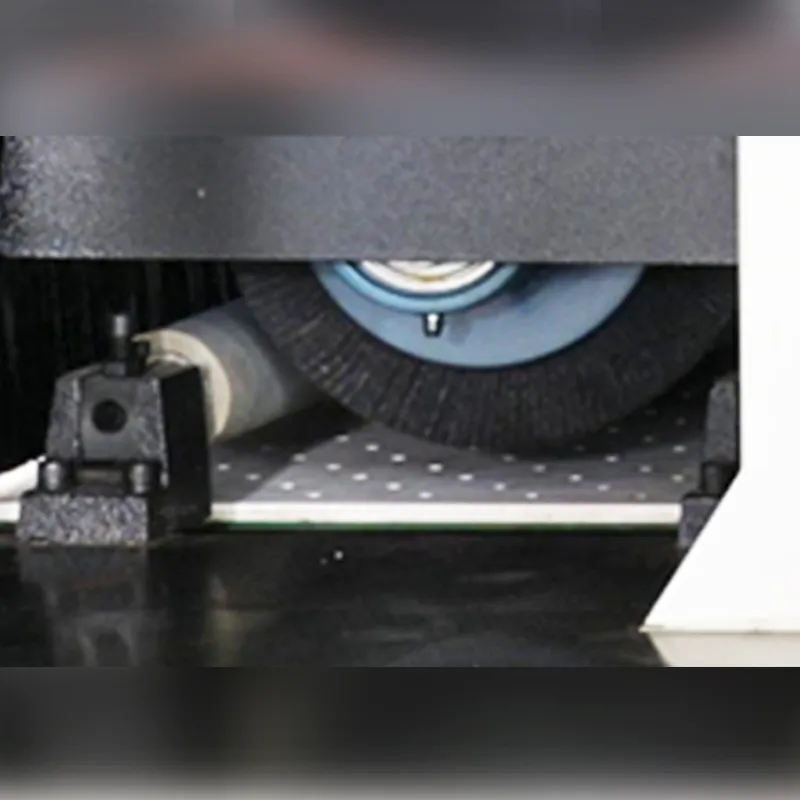

Polishing roller motor power	7.5kw	11kw
Polishing roller lifting power	0.25kw	0.25kw
Polishing roller swing power	0.25kw	0.25kw
Conveying motor power	1.5kw	1.5kw
Workbench lifting motor power	0.55kw	0.55kw
Vacuum suction motor power	15kw	15kw
Total motor power	49.75kw	60.35kw

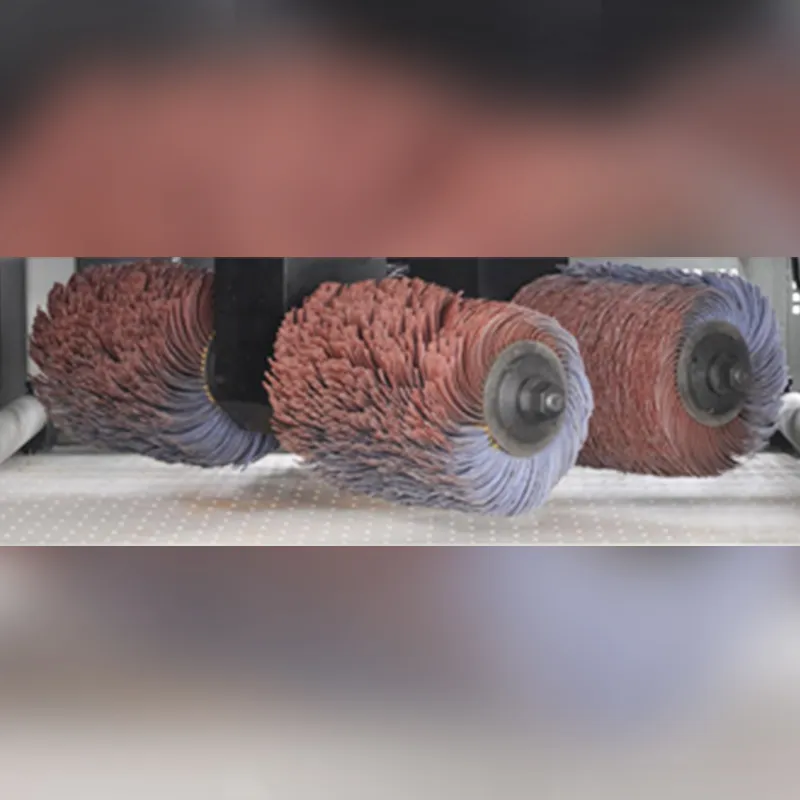

Brush roller	abrasive barrels	abrasive barrels
Size	350020002300mm	400022002350mm
Weight	3800kg	5100kg
