Multi Heads Sanding Machine

RUBBER ROLLERS PLUS PAD CONFIGURATION IS GOOD FOR CALIBRATING AND FINE SANDING
HARDENING TREATMENT MACHINING CENTER TO PROCESS THE MACHINE FRAME
ASSEMBE DYNAMICALLY BALANCED ROLLERS ON THIS MACHINE AND OTHER GOOD QUALITY PARTS, ALL OF THESE TO ENSURE THE ENTIRE MACHINE HAS HIGH PRECISION AND LONG TERM RELIABILITY
ECCENTRIC SHAFT IS ADOPTED. LIFTING CONTROL BY PNEUMATIC TURN-OVER IS EASY TO OPERATE
TOUCH SCREEN WHICH IS EASY TO OPERATE

Model	HM-S2W6~12
Width of the workpiece	20-200mm
Min. workpiece length	1000mm
Workpiece thickness range	3-80mm
Feed speed	（Frequency）3-40m/min
Feed motor power	0.55kw*9
Sand frame motor power	2.2KW*2
Sand frame speed	（Frequency）300-1440r/min
Sand frame angle	Adjustable
Sand head spindle motor power	1.5 kw*7

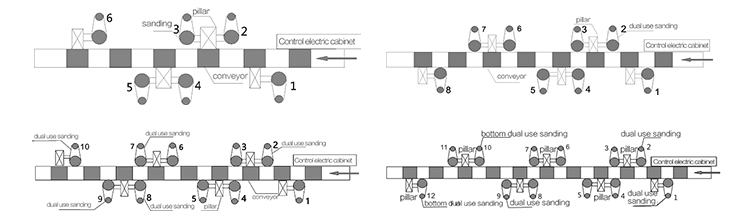

Number of head spindle configurations	7 sets(Configure PLC grinding wheel automatic compensation)
Overall size	1000016001600mm
Total power	42kw
Automatic compensation device	7 sets, Compensation amount 0.04mm/time
Sand head spindle speed	（Frequency）2800r/min
Sand head spindle rotation	Adjustable
Spindle size (shaft diameter * length)	Φ25.4100mm5 Φ25.4150mm2
Grinding wheel size (outer diameter)	180mm
Dust collector diameter	100mm
Working air pressure	0.2-0.6Mpa
Power supply	380V 50Hz，three-phase five-wire
Total power	19.5kw
Overall dimension	730014501550mm
Weight	3000kg
