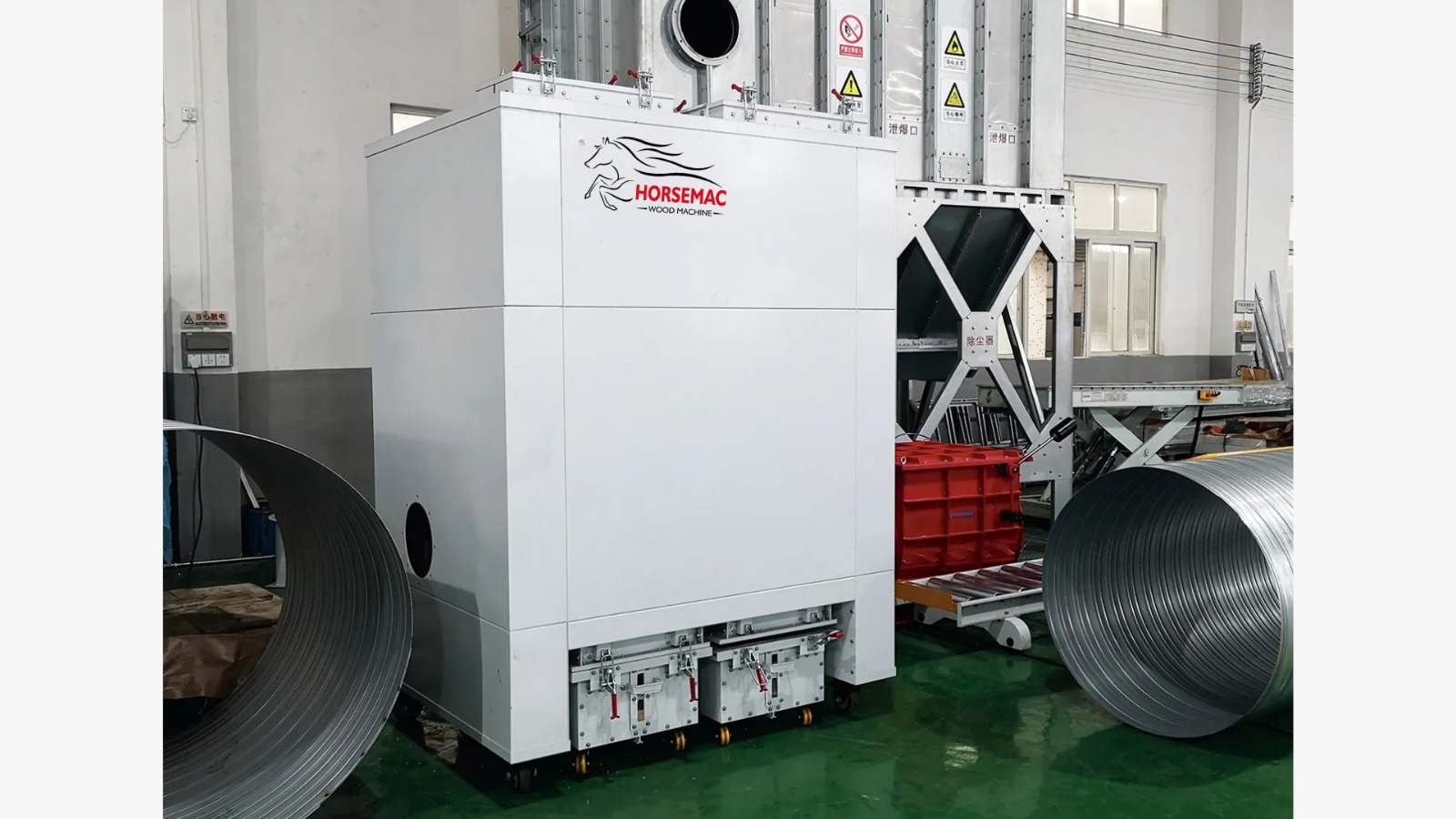

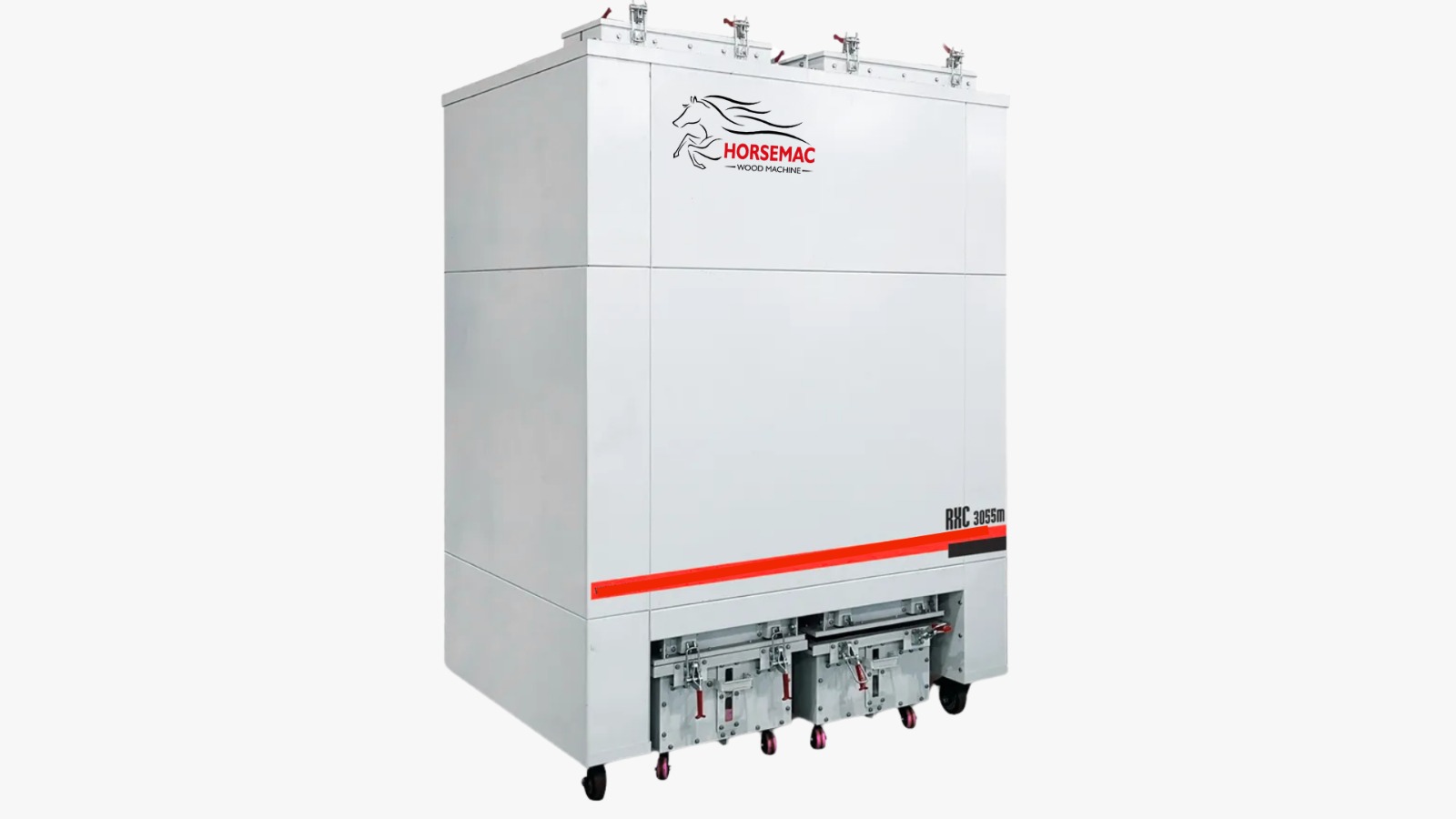

Pulsated Dust Collector Center

UNDER THE ACTION OF THE CENTRIFUGAL BLOWER, THE DUST-CONTAINING AIRFLOW ENTERS THE DUST COLLECTOR FROM THE SUCTION PIPE, AND THE DUST IS SEPARATED AND REMOVED BY THE STRONG INTERCEPTION EFFECT OF THE BAG FILTER MATERIAL INSIDE THE MACHINE.
THE FILTER BAG IS VIBRATED BY THE PULSE CLEANING DEVICE INSIDE THE DUST REMOVER, SO THAT THE DUST ADHERING TO THE SURFACE LOOSELY FALLS OFF, THEREBY ACHIEVING THE CLEANING EFFECT.
THE DUST COLLECTOR OF THIS SYSTEM IS A NEGATIVE PRESSURE EXTERNAL FILTER OPERATION MODE.

Model	HM3011M	HM3055M
Dust collect bag size	Φ136mm*1000	Φ136mm*1000
Cage type bag size	Φ136mm*1000	Φ136mm*1000
Dust collect bag qty	56pcs	30pcs
Dust collect bag total area	24㎡	13㎡
Air capacity	8000-10000m³ /h	4000-5000m³ /h
Dust entry requirements	No fire source	No fire source
Output dust concentration	≤60mg/ m³	≤60mg/ m³
Compressed air consumption	0.8m³/min	0.8m³/min
Weight	1360kg	950kg
Overall size	260018002600mm	180014002600mm
Air blower Noise (1 meter away)	80 dB(A)（after connecting with pipes）	80 dB(A)（after connecting with pipes）
