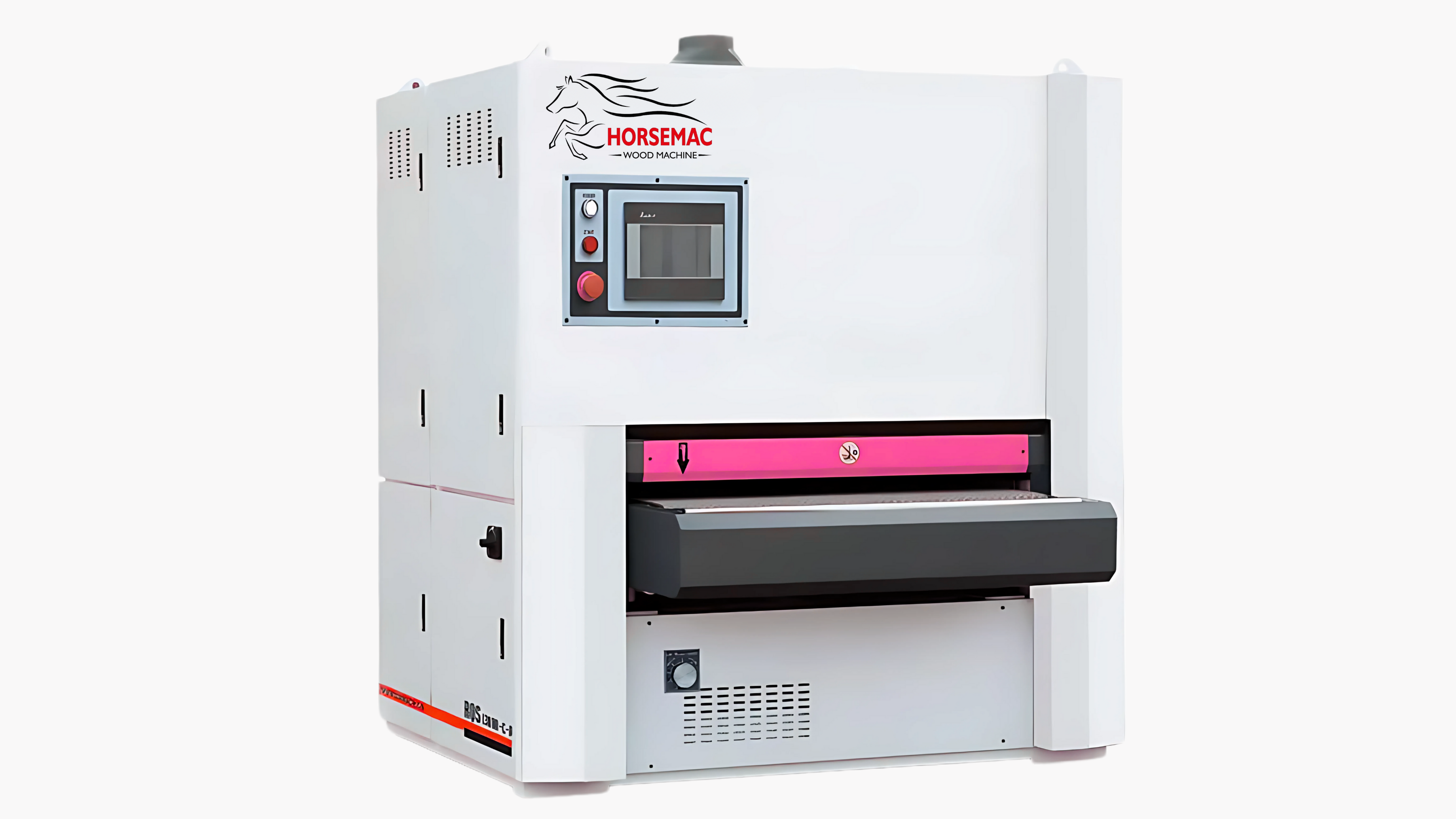

Segmented Pad Sanding Machine

HORIZONTAL SANDING BELT AND SEGEMENTED PAD FOR PRECISION SANDING
2 HORIZONTAL SANDING BELT AND SEGEMENTED PAD CAN BE CHOOSED
INTERGAL 53 KEYS SANDING PAD, ALUMINIUM STRUCTURE
HARDENING TREATMENT MACHINING CENTER TO PROCESS THE MACHINE FRAME
ASSEMBE DYNAMICALLY BALANCED ROLLERS ON THIS MACHINE AND OTHER GOOD QUALITY PARTS, ALL OF THESE TO ENSURE THE ENTIRE MACHINE HAS HIGH PRECISION AND LONG TERM RELIABILITY

Model	HM1300R-P	HM1300C-P	HM1300R-C-P
Working width	40-1300mm	40-1300mm	40-1300mm
Working thickness	2-100mm	2-100mm	2-100mm
Transverse abrasive belt speed	3-18m/s	3-18m/s	3-18m/s
Vertical abrasive belt speed	3-18m/s	3-18m/s	3-18m/s
Transverse abrasive belt size	150*5000mm	150*5000mm	150*5000mm
Ertical abrasive belt size	1320*2620mm	1320*2620mm	1320*2620mm
Feed speed	5-25m/min	5-25m/min	5-25m/min
Total motor power	33.92kw	33.92kw	48.92kw
Sanding belt (cloth)	180/240 mesh	180/240 mesh	180/240 mesh
Transverse sand fram	15kw	15kw	15kw
Vertical sand fram	15kw	15kw	15kw
Conveying device	3kw	3kw	3kw
Conveying bed lift	0.55kw	0.55kw	0.55kw
Brush roller	0.37kw	0.37kw	0.37kw
Working air pressure	0.6Mpa	0.6Mpa	0.6Mpa
Compressed air consumption	1.2m³/min	1.2m³/min	1.2m³/min
Overall dimensions	226219832130mm	226219832130mm	300021802300mm
