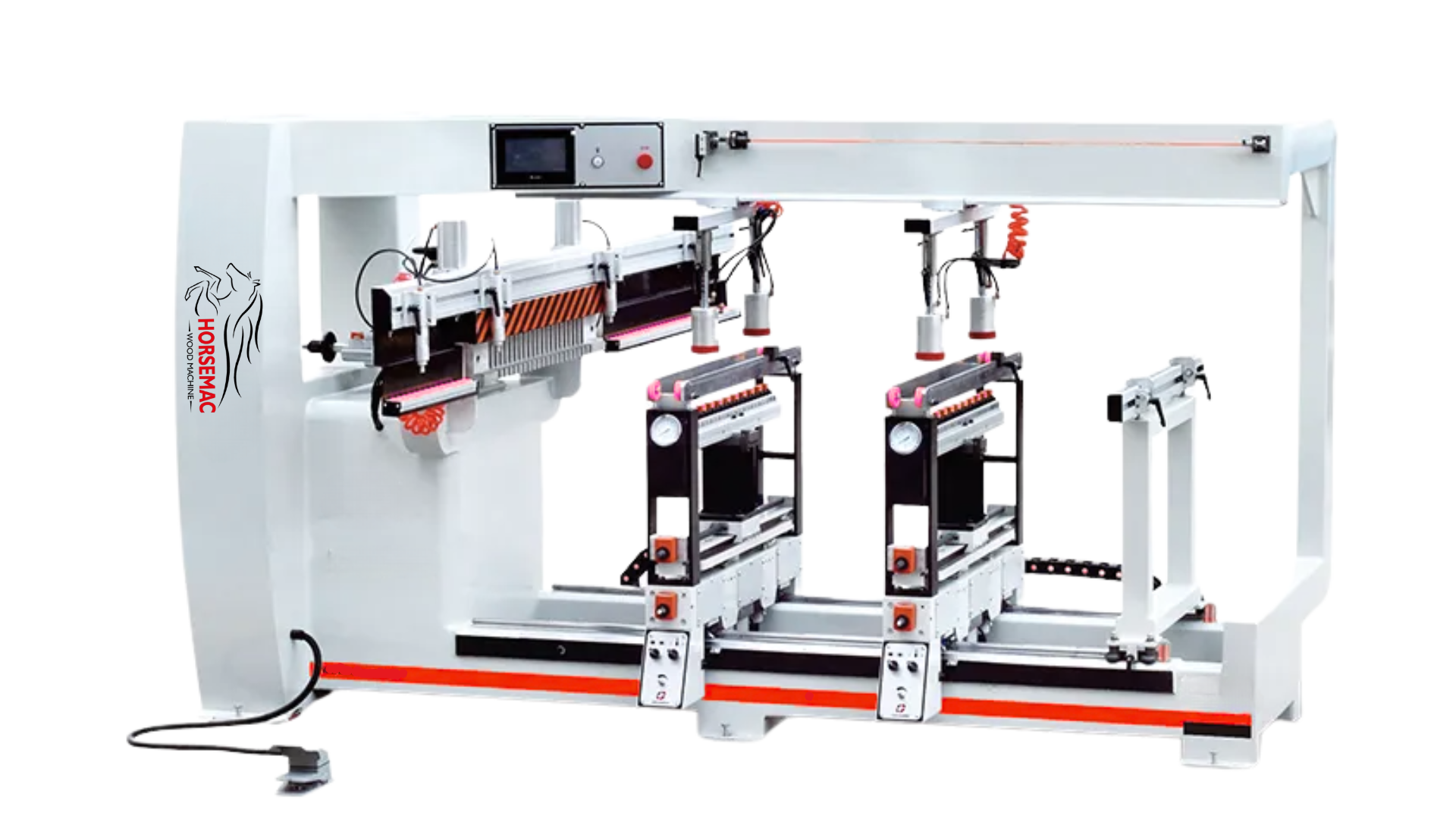

Three Rows Drilling Machine

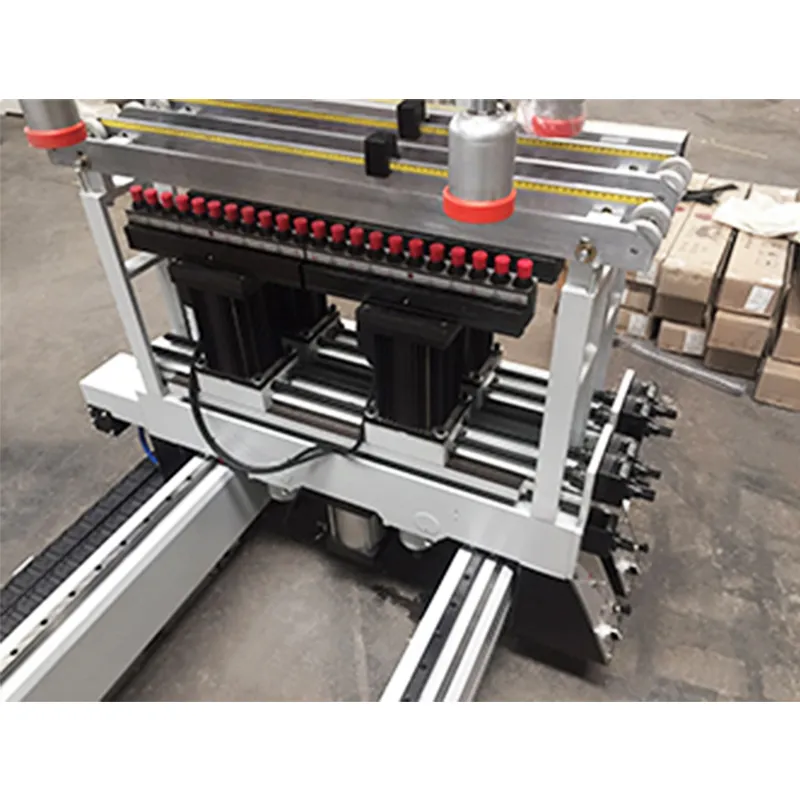

ONE HORIZONTAL AND 2 VERTICAL DRILLING LINE TO IMPROVE WORK EFFICIENCY
SUITABLE FOR DRILLING ALL KINDS OF DENSITY BOARD AND PARTICLE BOARD MAN-MADE BOARD, PVC BOARD, PERSPEX SHEET AND SOLID WOOD BOARD
BORING MACHINE IS COMMON DRILLING EQUIPMENT IN BOARD TYPE FURNITURE
UNDER MANY HOLE POSITIONS AND HOLES, IT ENSURES TO FINISH AT ONE TIME BY ADJUSTING DISTANCE OF EACH DRILLING ARRANGEMENT OR TRANSFORMING THE VERTICAL DRILLING ARRANGEMENT POSITION

Model	HM-3A	HM-3B
Max. center distance between holes	1650mm*640mm	1650mm*672mm
Min. center distance between holes	220mm*32mm	220mm*32mm
Workpiece thickness	8-80mm	8-80mm
Total quantity of spindles	21pcs*3	11pcs4+22pcs1
Total quantity of drill lines	2+1	2+1
Max. drilling diameter	35mm(single bit) 13mm(multi bits)	35mm(single bit) 13mm(multi bits)
Max. drilling depth	50mm	50mm
Dia. of drill bit shaft	10mm	10mm
Installation tool length	57/70mm	57/70mm
Spindle speed	2840rpm	2840rpm
Total power	4.5kw	7.5kw
Net weight	1000kg	1200kg
Overall dimensions	270025001650mm	270025001650mm
